Offer Details

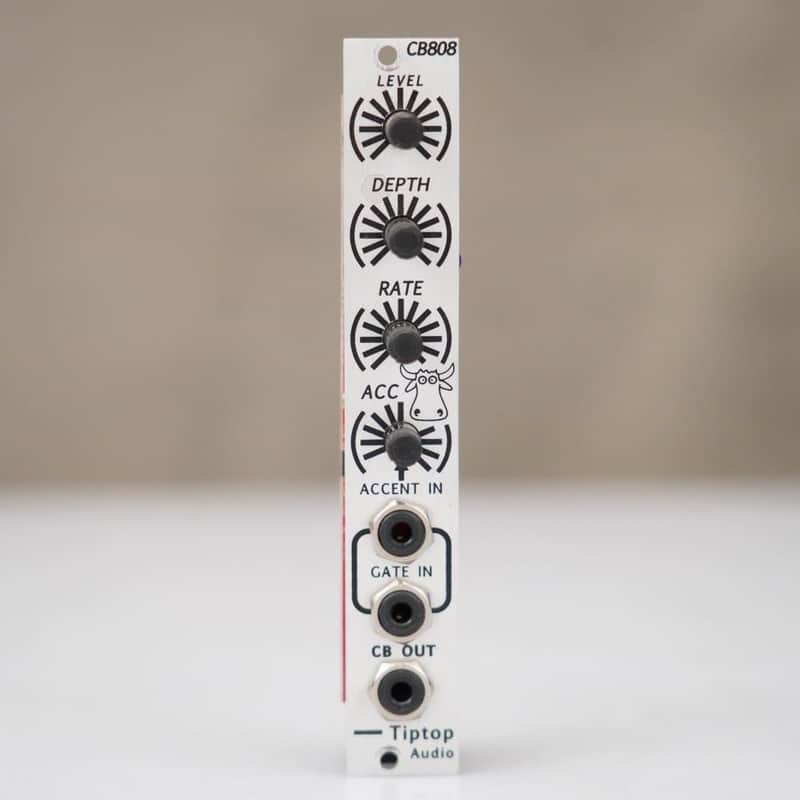

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition. INVENTORY #58393 BRAND: TipTop Audio MODEL: CB808 FUNCTION: Eurorack Synthesizer Module PRODUCT DESCRIPTION: This listing is for a TipTop Audio CB808 Eurorack Synthesizer Module. The TipTop Audio CB808 is a 4HP Eurorack synthesizer module that serves as an analog reproduction of the cowbell sound generator from the classic Roland TR-808 drum machine. SPECS: Internal LFO: Features a pitch-modulating LFO with dedicated controls for Rate and Depth, allowing for dynamic, evolving, or "spacey" cowbell tones. High-Powered Gain Stage: Capable of producing signals up to 20Vpp, allowing you to push the sound into distortion and saturation by increasing the Level and Accent controls above roughly 70%. Dual Pulse-Shaper: A built-in circuit that ensures the module triggers reliably from various sources, including trigger or gate signals from sequencers and clock dividers. Independent Accent: Allows for expressive dynamic range that can be controlled via an external CV signal Width: 4 HP. Depth: 14mm (approx. 0.6 inches). Power Consumption: +12V: 8mA, -12V: 8mA (some sources list up to 30mA peak). Sound Engine: Two analog square wave oscillators passed through band-pass filters. Inputs/Outputs: 1 x Accent Input, 1 x Gate/Trigger Input, 1 x Audio Output (all 3.5mm). ACCESSORIES INCLUDED: This item comes as seen in photos and does not include any accessories. EXTRAS INCLUDED: Eurorack Power Cable (2) Eurorack Screws & Washers UNPACKAGED WEIGHT: 1 lbs. UNPACKAGED DIMENSIONS: 5" x 1" x 2"
