Offer Details

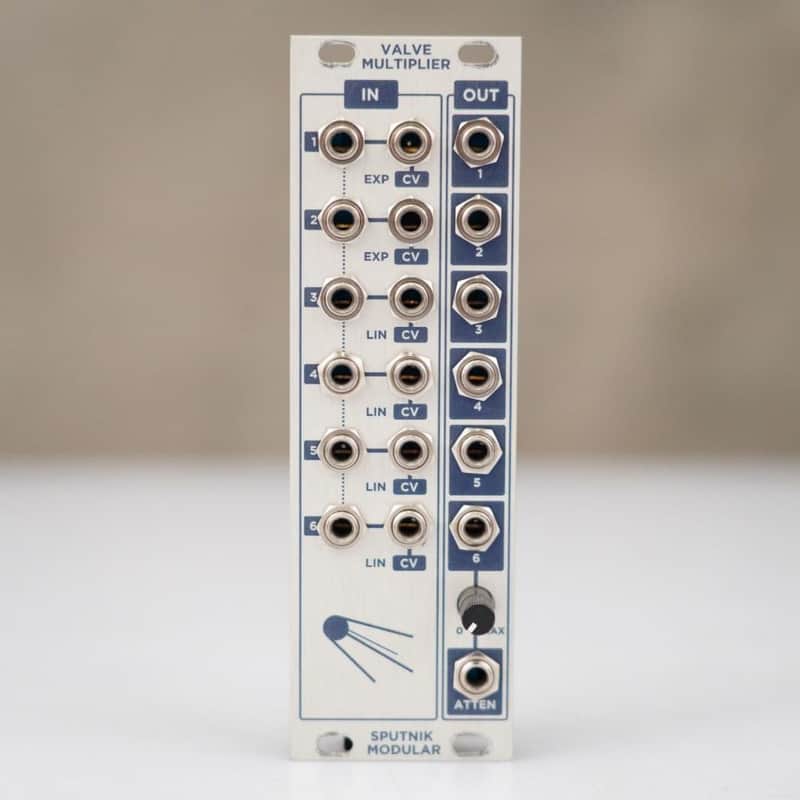

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition. INVENTORY #58439 BRAND: Sputnik Modular MODEL: Valve Multiplier FUNCTION: Eurorack Synthesizer Module PRODUCT DESCRIPTION: This listing is for a Sputnik Modular Valve Multiplier Eurorack Synthesizer Module. The Sputnik Modular Valve Multiplier is a multi-functional Eurorack module featuring a bank of six Voltage Controlled Amplifiers (VCAs) designed for audio or CV signal level control. It is characterized by its sequential normalization and mixed exponential and linear response channels. SPECS: 6-Channel VCA Bank: Consists of six independent VCAs that can be used for chaining dynamic outputs. Mixed CV Responses: Channels 1 and 2: Feature an exponential CV response. Channels 3–6: Feature a linear CV response. Sequential Normalization: Both signal and CV inputs are normalized sequentially, allowing a single input to pass through every VCA channel until interrupted by another connection. Inverse Outputs: Channel 6 provides two inverted outputs, one of which includes a manual attenuator. DC-Coupled: All channels accept both audio and CV modulation signals, though it is not recommended for high-precision pitch CV processing. Width: 8HP. Power Requirements: +12V, -12V, and +5V. CV Range: Accepts 0 to +5V signals; CV inputs are normalized to +5V (fully open) if no jack is inserted. Depth: Standard Eurorack depth (approx. 28mm for typical Sputnik modules). ACCESSORIES INCLUDED:   16 Pin Eurorack Power Cable (4) Eurorack Screws & Washers UNPACKAGED WEIGHT: 1 lbs. UNPACKAGED DIMENSIONS: 5" x 2" x 2"
