Dimensions
20 HP
30 mm deep
Current Draw
165 mA +12V
20 mA -12V
0 mA 5V
Price
$529 Price in €

This Module is currently available.

Specs are approved by the manufacturer

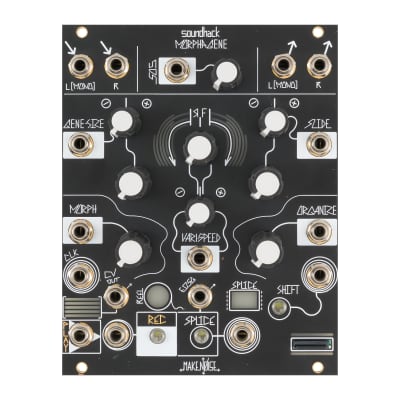

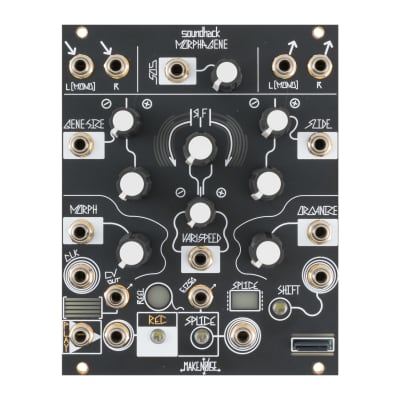

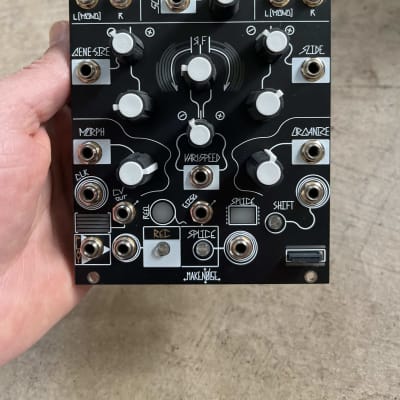

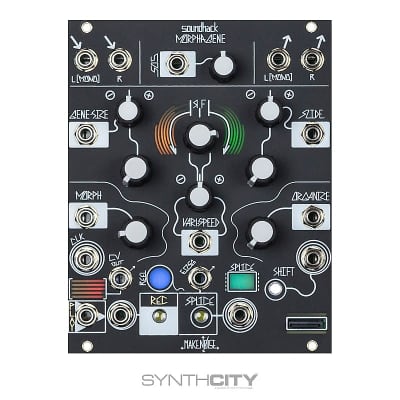

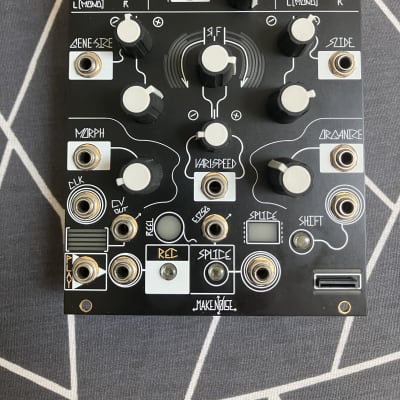

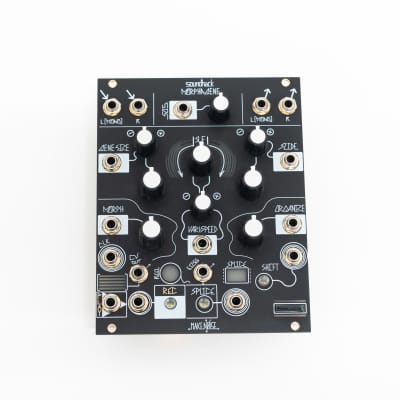

The Morphagene is a next generation tape and microsound music module that uses Reels, Splices and Genes to create new sounds from those that already exist. Search between the notes to find the unfound sounds.

A few of the Morphagene's most basic uses: Splice recorded audio and jumble it using ORGANIZE. Manipulate playback speed and direction with Vari-Speed. Granularize with Gene-Size and Slide. Layer or Stagger Genes using MORPH. Undertake iterative music processes by recording manipulations and overdubs into new Splices, like having two machines (one for Playback and modulations, one for Record). Process sound in real time using Time Lag Accumulation. Utilize envelope following CV OUT and EOSG Trigger to engage Morphagene in conversation with the rest of your modular system. Stretch and squash sound with Clock input.

  • Voltage control over all sound manipulation parameters
  • STEREO I/O with Auto Input Leveling
  • Recording Reel can be up to 174 seconds long
  • Record / create up to 300 Splices per Reel
  • SD Card stores multiple Reels
  • Sound On Sound allows for layering sounds
  • Playback and Recording independent, like having two machines
  • Vari-Speed range 12 semitones up and 26 down, over 3 octaves
  • 24-bit codec, creates 48kHz 32 bit WAV files
  • Back up Reels on computer with SD Card
  • Includes blank SD Card

http://www.makenoisemusic.com/modules/morphagene


Ø 4.63 (217 Votes) Average Rating
submitted Jan 19th 2017, 17:52 by makenoise | last Change May 13th 2022, 14:33 by makenoise
