Dimensions
1 PU
60 mm deep
Price
$900 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

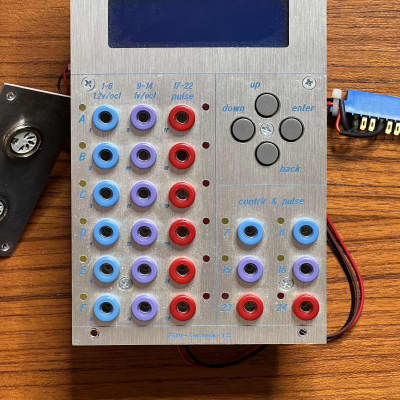

MIDI Universal Converter (MUC) in Buchla format

Technical Specifications:

16 CV outputs with a resolution of 16 bits for variable control voltages such as Volt/Octave , Hz/V, Velocity , Release , Pitch Bend and Controller values.
5 Voltage ranges: 0V .. 5V, 0-10V , -2.5V .. 2.5V , 5V .. 5V, -5V .. 0V.
Furthermore, the CV outputs can also be configured for trigger , gate , or sync signals with a selectable maximum control voltage from 3 to 10V.
8 digital control outputs V-Trig 5V (10V when you remove solder bridge) for trigger , gate and sync signals.
3 MIDI ports: MIDI In, MIDI Out, MIDI Thru.
Status LED connection for the visualization of incoming MIDI data.
Short-circuit-proof driver circuit of all 24 outputs, which can provide a control current of up to 10mA. Thus, there is the possibility of multiple inputs to be wired in parallel with one of these outputs.
Big display with a display size of 4 x 20 characters for a clear representation of the configured outputs.
All parameter settings are immediately saved in a flash memory.
Spread adjustment for each CV outputs via 16 potentiometers.
Tune/offset settings via the menu control (Step size: 0, 32mV).
With the MUC- 8xx series , you can perform a firmware update via the MIDI In input. The current firmware version, you can always download free from our website.
Power supply: 12V to 24V, 95mA current consumption.
Display dimension (cm):
Viewing area: 7,6 x 2,6
Metal frame: 9,7 x 4,0
PCB: 9,8 x 6,0
Mounting holes: 9,3 x 5,5

https://www.muffwiggler.com/forum/viewtopic.php?t=180079&highlight=

http://www.edv-technik-ts.de/html/muc-810-kit.html
