Dimensions
4 Col
Price
$988 Price in €

This Module is currently available.

NFS

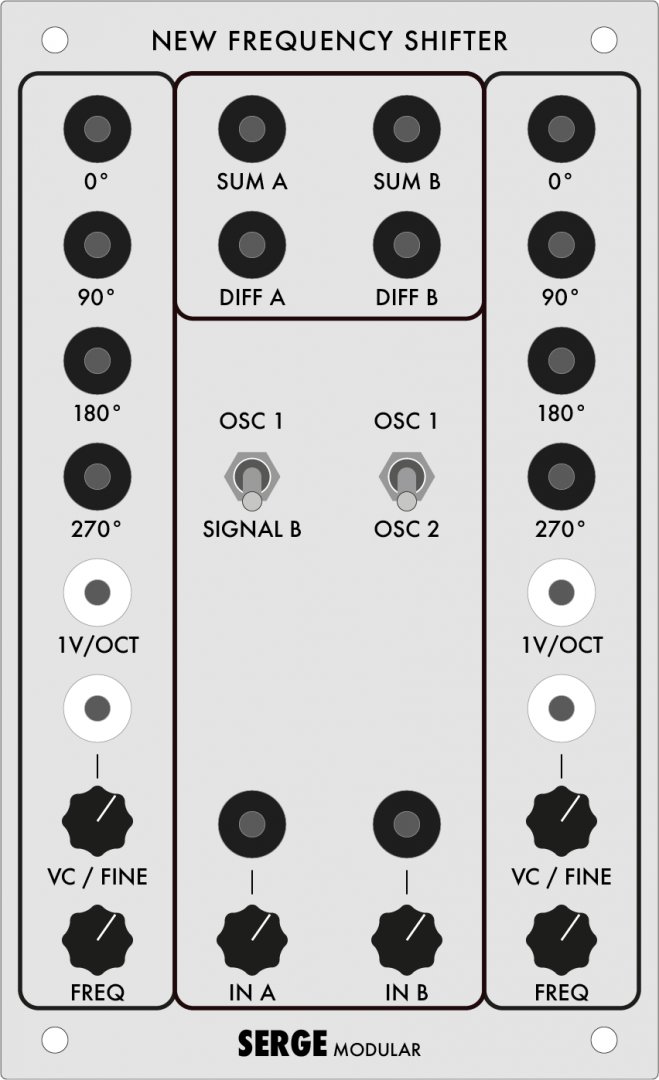

The Serge New Frequency Shifter is another astonishing (re)design by Serge, much improved over his original 1979 version. Actually it is a combination of two new Quadrature Oscillators plus two(!) Frequency Shifters, offering 5 different modes from separate use to true Stereo Processing.

New Quad Oscillator(s)

  • 4 sinewave outputs
  • Extremely wide frequency range: deep sub audio up to >16kHz
  • Exceptional tracking over 6+ octaves (typically
  • Temperature compensated
  • Designed by Serge Tcherepnin in 2024

New Frequency Shifter(s)

  • 2 independent Frequency Shifters
  • External Mode: Right side modulates left
  • True Stereo processing possible
  • Designed by Serge Tcherepnin in 2024

The FREQUENCY SHIFTER does not transpose. Rather it shifts each harmonic of the signal by a fixed value equal to the shifting frequency. Thus, as the shifting frequency becomes larger, the relationships between overtones are altered, and timbres change dramatically.

https://serge-modular.com/serge_4x4?mod=RS_FRS4X4


submitted May 28th, 21:06 by AkimDrml | last Change Jun 3rd, 15:24 by AkimDrml
