VC Switch/Address

The VC Switch/Address is a versatile 8-position voltage-controlled switch and gate router that combines precise manual and CV control via a window comparator and bipolar attenuator.

VC Switch/Address – 8-Position Voltage-Controlled Switch

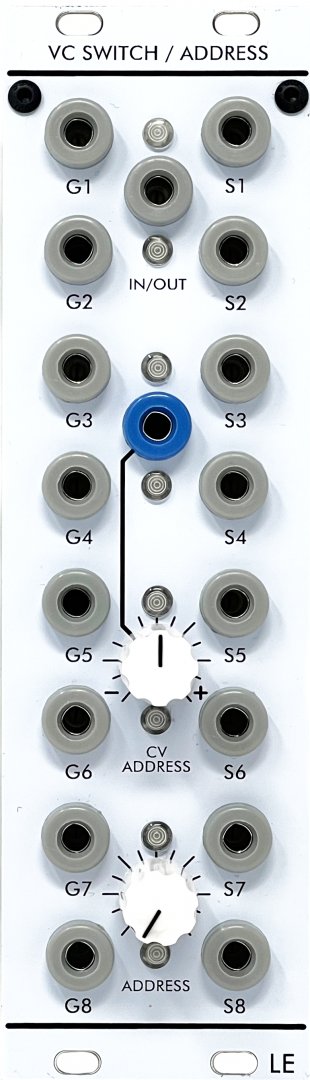

The VC Switch/Address is an 8-position, bi-directional voltage-controlled switch driven by a window comparator, offering precise manual and CV control over routing and gate generation. Use the “Address” knob to manually select the active position, or patch into the CV Address input with full bipolar attenuation to dynamically shift the switch point—adding or subtracting from the current address for smooth or stepped modulation.

Each of the 8 switch positions has its own dedicated Gate output (G1–G8), making it an ideal trigger source for envelopes, sequencers, pulse generators, or tunable offsets. The S1–S8 switch I/O points allow flexible routing of audio or CV signals.

Outputs are stackable via OR logic, enabling creative combinations—great for burst generation, waveform mixing, or audio-rate modulation tricks. Route multiple oscillator waveforms into the switch to generate evolving timbres based on the active address position.

This module is a powerful tool for sequential switching, rhythmic gating, and waveform sculpting in any modular system.
