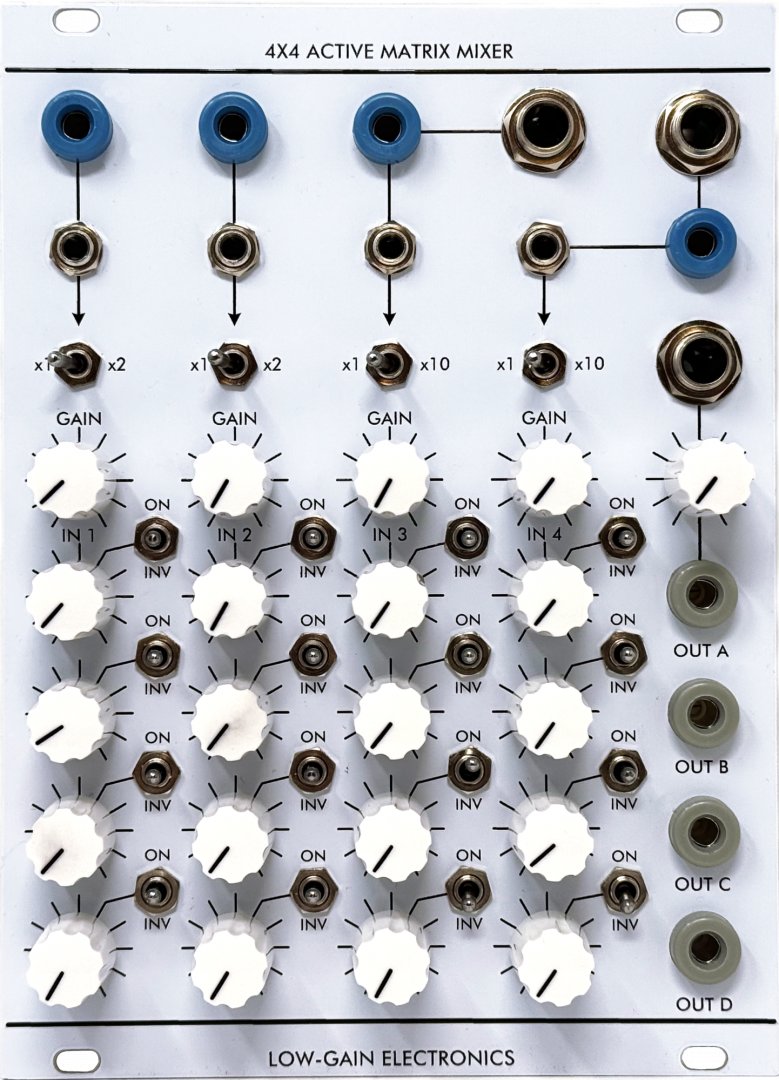

4x4 Active Matrix Mixer

The 4x4 Active Matrix is an active 4 input x 4 output Matrix Mixer in the 4U modular format**

The 4x4 Active Matrix is an active 4 input x 4 output Matrix Mixer in the 4U modular format**
The first 2 input channels have 1/8” & Banana Jack inputs w/ toggle switches for x1 or x2 gain structure. Channels 3 & 4 have 1/8”, 1/4” and banana jack inputs with toggle switches for x1 and x10 gain.
Which makes channels 3&4 great for interfacing Line or Guitar pedal based signals w/ your modular.
Each input has a master input attenuator before going to the mix nodes.

Each Summing Node input has a 3-Way toggle switch with the option to turn On, Off and Invert the signal from the corresponding output.
With exception of output A, all outputs are banana jacks (Gray).
Output A also has a 1/4” output w/ dedicated output attenuator.
