Offer Details

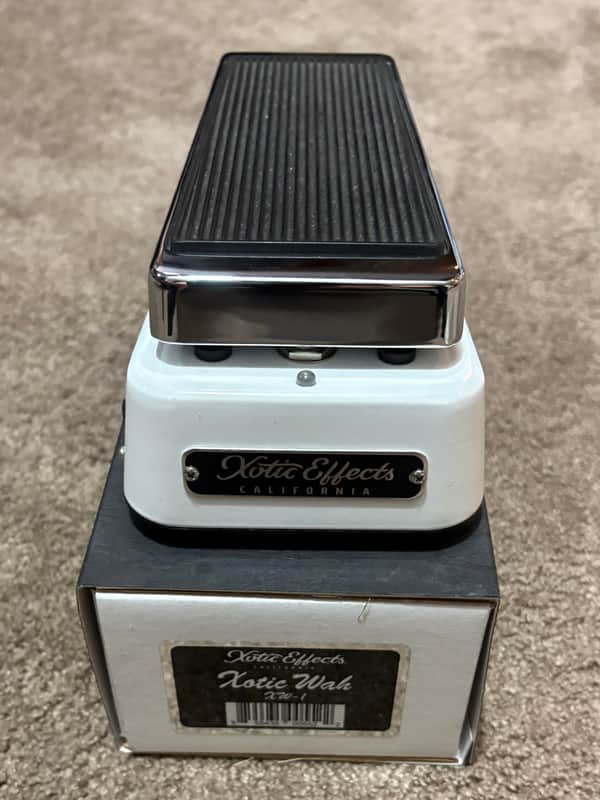

Beautiful and great sound wah. Very versatile. Works great and comes with the box. I'll include the screws I got to put on the bottom if you want to use velcro.The Xotic Wah XW-1 is a highly adjustable analog effects pedal inspired by the legendary 1967-1968 Italian Clyde McCoy wahs. Featuring a compact footprint that is 20% smaller than traditional wahs, it offers extensive tone-shaping controls, a fuzz-friendly buffer, and durable, friction-free operation. [1, 2]Core SpecificationsSpecification [1, 2, 3, 4, 5]DetailPedal TypeAnalog WahBypassTrue Bypass (Gold contact relay)Input / Output1/4" Mono In / OutInput Impedance(1 \text{ M}\Omega)Output Impedance(10 \text{ K}\Omega)Nominal Level-20 dBVPower Supply9V DC Regulated (Negative Center) or 9V BatteryCurrent Draw5 mADimensions (D/W/H)8.27" (210mm) x 3.94" (100mm) x 2.64" (67mm)Weight2.16 lbs (980g)Key Features & ControlsUnlimited Tonal Shaping: Equipped with an adjustable Q, bias control, and a built-in two-band EQ (Treble and Bass) allowing for a wide range of sweepable frequencies.Fuzz-Friendly Circuit: Features a specially designed buffering circuit so the wah sounds great even when placed before or after fuzz pedals.Adjustable Treadle Torsion: The rocker pedal tension can be easily adjusted to fit your specific playing feel and prevent it from falling forward.Internal DIP Switches: Allows for fine-tuning of the wah resonance frequency range. [1, 2, 3, 4, 5]
