Offer Details

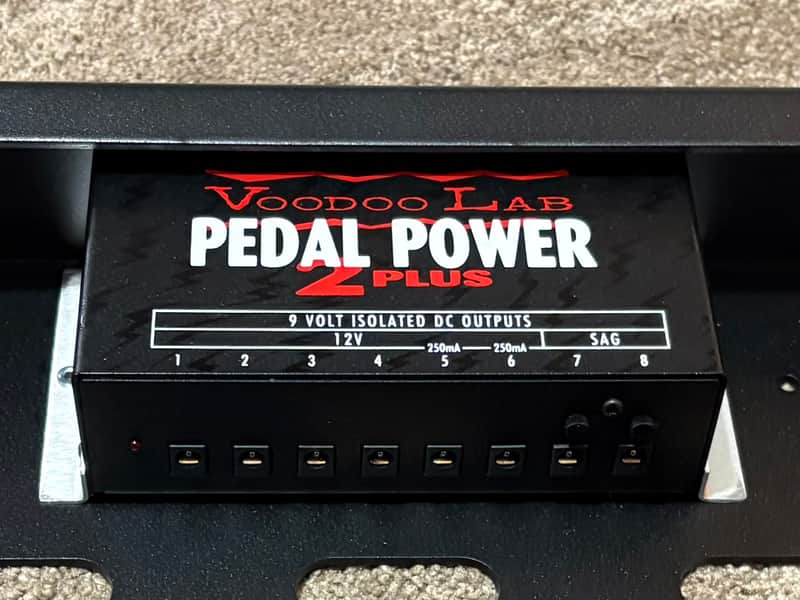

Very little use, never left the house. It was part of a package that included the pedalboard. PEDALBOARD NOT INCLUDED.From Voodoo Labs:The Voodoo Lab Pedal Power 2 Plus is an industry-standard, linear-regulated pedalboard power supply featuring 8 completely isolated DC outputs designed to eliminate ground loops and hum. [1, 2]Output Specifications & DIP Switch Configurations [1]Each output uses a standard 5.5 x 2.1mm center-negative barrel connector. A set of DIP switches on the bottom of the unit alters the voltage and functionality of the ports: [1, 2, 3]Outputs 1–4 (Standard / Boss ACA):DIP Switch Normal (9V): Delivers 9V DC at 100mA.DIP Switch Away from Normal (12V): Delivers 12V DC at 60mA (specifically for vintage Boss ACA pedals).Outputs 5–6 (High Current / Line 6):DIP Switch Normal (9V): Delivers 9V DC at 250mA (for high-draw digital pedals).DIP Switch Away from Normal (12V): Delivers 12V DC at 200mA (for Line 6 modeling stompboxes).Outputs 7–8 (Standard / SAG Control):DIP Switch Normal (9V): Delivers 9V DC at 100mA.DIP Switch Away from Normal (SAG Mode): Activates the top-panel SAG dials, letting you manually choke down the voltage from 4V to 9V to simulate a dying battery (ideal for transistor fuzz and distortion circuits). [1, 2, 3, 4, 5, 6, 7]Power & Hardware SpecsTotal Output Current: 1,100mA max DC power across all ports.Power Transformer: Custom-designed, ultra-low noise toroidal transformer.Input Voltage: 120V 50/60Hz (North American Model).Courtesy AC Outlet: Rear auxiliary standard AC outlet rated for 200 watts maximum (do not exceed; not for heavy appliances or high-watt amps).Protection: All outputs are fully short-circuit protected. [1, 2, 3, 4, 5]Physical DimensionsWidth: 6 inches (152 mm).Depth: 3.4 inches (86 mm).Height: 1.75 inches (44 mm).Weight: 2 lbs (0.9 kg). [1, 2, 3]Included CablesThe package includes an IEC power cord and a standard polarity DC cable 8-pack: [1, 2]6 x 2.1mm angled-to-angled barrel cables2 x 2.1mm straight-to-angled barrel cables1 x 2.5mm red barrel cable (reverse polarity for Line 6)1 x 3.5mm mini-plug (for vintage MXR/Electro-Harmonix)1 x 9V battery snap jumper [1, 2, 3]
