Dimensions
230 mm wide
145 mm high
Current Draw
? mA / ? V AC/DC
Price
$667 Price in €

This Pedal is currently available.

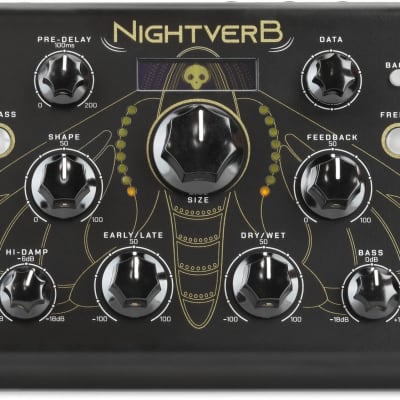

12 Parameters: Pre-Delay, Size, Shape, Feedback, Stereo Width, Low-Damp, Hi-Damp, Dry/Wet, etc.
Parameters can be set simultaneously for detailed reverb design (controllable via MIDI CC)
4 - 200 ms adjustable pre-delay time
1 ms - 1000 s decay time adjustable
Save and recall functions for all parameters
Freeze function with chromatic tuning (playable via MIDI notes)
Bypass function
Adjustable input amplification
Configurable foot switch input
30 Factory Preset memory locations
70 User Preset memory locations
Preset export via USB
Sturdy aluminium housing

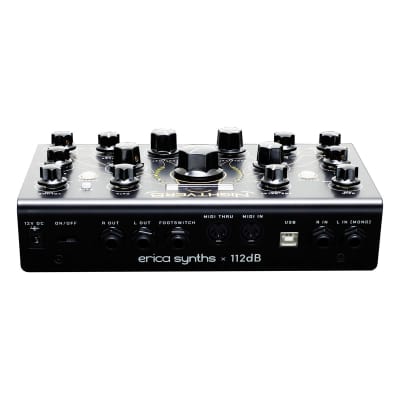

Stereo input: 6.3 mm jack, balanced
Stereo output: 6.3 mm jack, balanced
Foot switch input: 6.3 mm jack TS
MIDI In: 5-pin DIN
MIDI Thru: 5-pin DIN
USB type B
Dimensions (W x D x H): 23 x 14.5 x 7 cm
Weight: 833 g
