Dimensions
95 mm wide
120 mm high
Current Draw
300 mA / 9 V DC / Negative Center
Price
$250 Price in €

This Pedal is currently available.

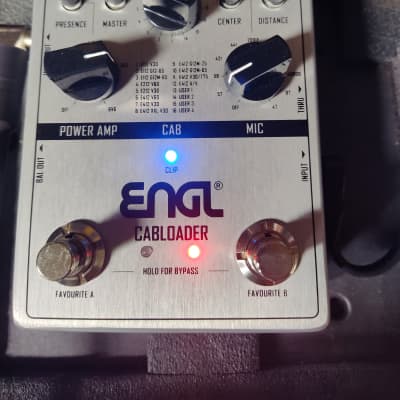

IR Loader and DI box

Cabinet Simulator for Electric Guitar
IR Loader and DI box
12 Speakers (IR-based speaker simulation)
4 Free memory slots for user or 3rd party IRs
10 Microphone and 4 power amp simulations
Load user or 3rd party IRs via software (PC, Mac)
Micro USB port for connecting PC and Mac
Pressure switch: INST / LINE for the input sensitivity
GND LIFT
Favourite A: Footswitch for storing and calling Preset A
Favourite B: Footswitch for storing and calling preset B
True bypass
Controller (all controller positions are storable): MIC: Microphone selector switch
Center and Distance controls to adjust the position of the microphone
CAB: Box selection switch
Power Amp: Power amplifier selector switch
Presence and Master controls
Input jack
Thru: The input signal is looped through without any changes from the input
Headphone output
Unbalanced output
Balanced output (XLR)
Technical Data:

Sampling rate: At least 44.1 kHz
Sampling Accuracy: 24-bit Signal to Noise Ratio: 100 dB
IR format: WAV
Sampling Length: 1024 Samples (23.22 ms)
Power supply: 9 V DC 300 mA (negative pole inside, not included)
Dimensions (D x W x H): 12 x 9.5 x 5.55 cm
Weight: 405 g

https://www.engl-amps.com/shop/accessories/engl-cabloader/
