Dimensions
64 mm wide
121 mm high
Current Draw
? mA / ? V AC/DC
Price
$149 Price in €

This Pedal is discontinued.

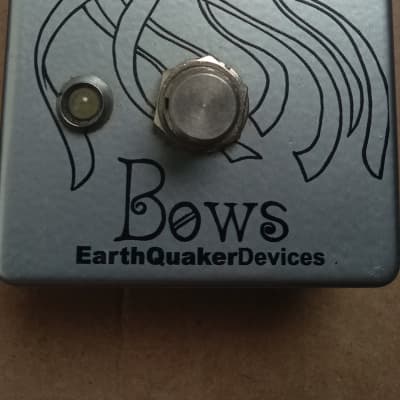

Germanium Preamp

Germanium Preamp
The Bows is a Germanium preamp designed around a rare NOS OC139 black glass transistor. For being a little one-knobber the Bows wears many hats. Right out of the box it's got several tone shaping abilities spread between two modes: Full and Treble. Full mode is warm with a lot of body and low end. Treble mode is a resonant, treble booster with a “cocked wah” tone that can drive any tube amp into harmonic rich distortion territory. Each mode has a little bit of grit to start with, but as you get passed 12 o'clock on either setting their subtleties are accented. The vowel-like sound out of the Treble side will be more prevalent as you bring the Level up. Doing the same on Full mode will get you a nice, full bodied crunch tone that retains clarity. Place any drive pedal before the Bows and it's another story. Full mode turns a dirt signal into a crumbling wall of sonic chaos, while Treble mode becomes an ultimate lead tone. Each and every Bows is built one at a time by real life human beans in the temperature controlled bubble of Akron, Ohio.

This device is true bypass and uses relay based “soft touch” switching. Audio will not pass without power.

List Price: $149.00
Controls
Level: Adjusts the output level by setting the bias voltage of the transistor. A small amount of noise while dialing this in is perfectly normal.

Tone Toggle: “Treble” for a brighter, more resonant tone and “Full” for a warmer, bass-heavy push.

Measures
4.75″ x 2.50″ x. 2.25″ with knob

Power
Please use a standard 9 volt DC power supply intended for musical instruments with a negative center 2.1mm barrel or a 9v Battery.

Current draw is 9 mA.
