Dimensions
64 mm wide
119 mm high
Current Draw
50 mA / 9 V AC / Negative Center
Price
$311 Price in €

This Pedal is currently available.

Analog modulator

Full Analog Vibrato, Chorus & Flange
Instantly overlay a worn-out layer of stretched tape to your playing. Let it wander. Let the years in the attic speak for themselves. Crinkles, wear and instability add character. Get lost in the lush stereo output.

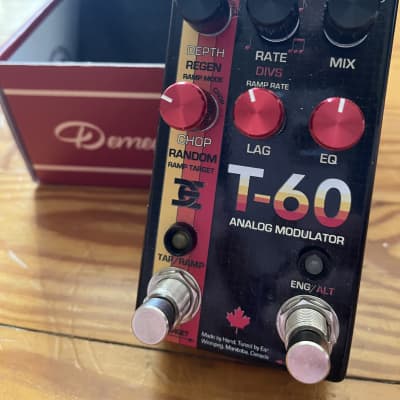

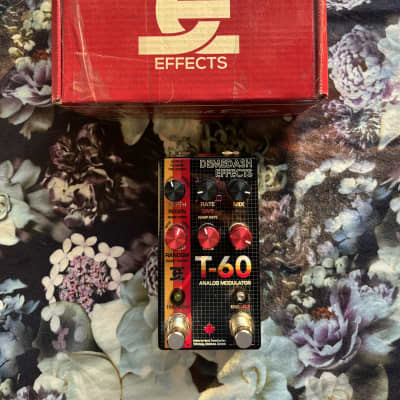

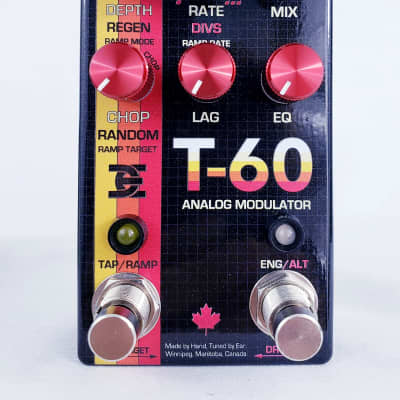

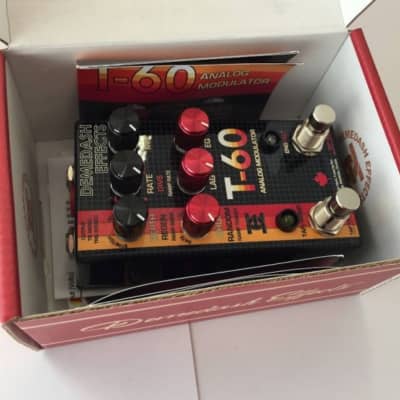

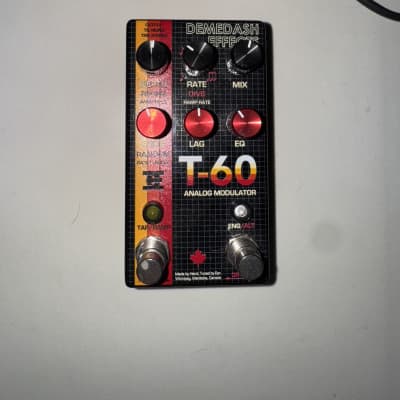

The T-60 combines the gorgeous sound of a classic analog BBD device with the as-of-yet unseen possibilities granted by generating modulating waveforms via digital means. Chorus, Vibrato, Flange and much more are on tap, and the ways you can bend the pitch of the wet path are almost unending.

One of the most feature-packed, compact modern analog chorus pedals yet created, the T-60 doesn't take any half-measures. And a fully analog signal path means that your signal is never digitized - all effects are applied via analog means.

Companding & careful filtering ensure that the noise floor is kept low without making the effect sound muffled.

Analog Signal Path, Digital LFO
The T-60’s true powerhouse is its microcontroller brain and meticulously crafted and digitally generated LFO.

Two LFOs are simultaneously generated - one is fully random, and the other is a mix of Sine and Triangle wave (the proportion of sine to triangle changes with the rate, to ensure the best possible sound at any speed).

The Random control lets you mix the two LFO outputs in any proportion you like.

Chop applies a sample-and-hold effect to the periodic LFO, pixelating it and turning it into a staircase waveform - introducing little pitch jumps as the wave moves up and down. As you increase ‘Chop’, you decrease the smoothness of the Random LFO - turning it from a gliding, wavering signal into a sequence of randomly generated square levels.

Tap in a tempo.

Ramp the LFO rate or the Chop rate.

Unique sounds for unique players
A powerful high/low subtractive shelving EQ can be set to apply to only the wet, or both the wet and dry signals lets you decide how you want to dial in your sound.

The bucket brigade clock circuit has a wide range of clock speeds available via the Lag knob - giving you plenty of options as to how much or how little latency between dry and wet signals you want (though you’ll never hear an audible delay).

Low lag settings yield flanging swept filter tones, mid-ranged settings give classic shimmering chorus, and longer times lead to thick gooey chorus and raw, wavering vibrato.

Adding to this, the Regeneration control allows you to re-enforce the comb-filter effect via feedback, increasing resonance and thickening up the flange, vibrato or chorus sound.

Stereo Output
The T-60 features stereo outputs, with the left channel providing Dry - Wet (subtractive mixing), and the right providing Dry + Wet (additive mixing).

When used in mono mode, the subtractive mix is output.

A TRS to dual-TS cable (not included) is required to send the stereo output to two different jacks.

Details
9VDC, 90mA current draw
Fully Analog Signal Path
Low noise floor
Dual Mono Output in bypass
High Quality Anodized Aluminum Knobs
125B Size (4.7”x2.5”)
Contains reverse & over-voltage protection to save you from yourself.
