Dimensions
14 HP
40 mm deep
Current Draw
130 mA +12V
130 mA -12V
0 mA 5V
Price
$379 Price in €

This Module is currently available.

Specs are approved by the manufacturer

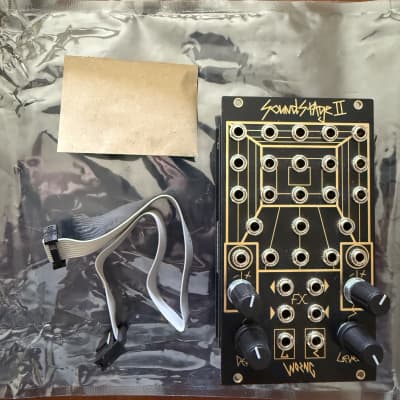

Voltage Controlled Stereo Spectral Mixer with FX send and return

SoundStage II is a stereo mixer module unlike any other.

Completely reimagining what a mixer needs to be in a Eurorack system, SoundStage helps you build your mix just by patching your voices in. Inputs are placed in the stereo field depending on their horizontal patch position left to right, and placed in the frequency spectrum depending on vertical patch position, with twenty carefully tuned analogue resonant -12dB/octave Sallen-Key filters to give definition to low, low mid, mid, high mid and high voices.

Depth of filtering and output level have dedicated controls and bipolar CV inputs, allowing creative uses such as sidechain compression and rhythmic filtering. SoundStage II improves on the original with an improved Depth control circuit, added (fully filtered) FX send and return, better low end response, better power consumption, and a log VCA on the output for better response when patching compression or expansion on the outputs.


Ø 4.86 (7 Votes) Average Rating
submitted Aug 17th 2023, 05:59 by WORNG | last Change Aug 17th 2023, 06:02 by WORNG

30 Users are observing this
