Dimensions
6 HP
39 mm deep
Current Draw
19 mA +12V
16 mA -12V
0 mA 5V
Price
$129 Price in €

This Module is currently available.

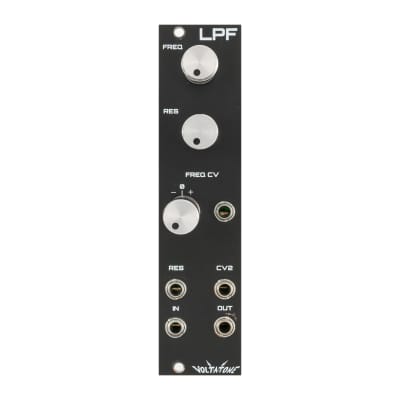

24dB low pass filter based on the AS3320 chip

24dB (4-pole) low pass filter based on the 3320 chip used in classic synthesizers such as the Prophet 5 and Oberheim OB-Xa. Cutoff frequency CV control allows for attenuating and inverting of CV input. Also features frequency CV2 (fixed level) and resonance CV. Resonance is tuned for self oscillation.

TECHNICAL SPECS:

• 6 hp (30x128mm panel size)

• Depth: 39mm

• +12V 19mA

• -12V 16mA

• 5V 0mA

https://www.voltatone.com/shop/24db-lpf
