Dimensions
14 HP
Current Draw
120 mA +12V
40 mA -12V
0 mA 5V
Price
$443 Price in €

This Module is a prototype or in a concept phase.

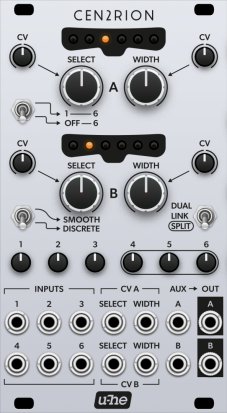

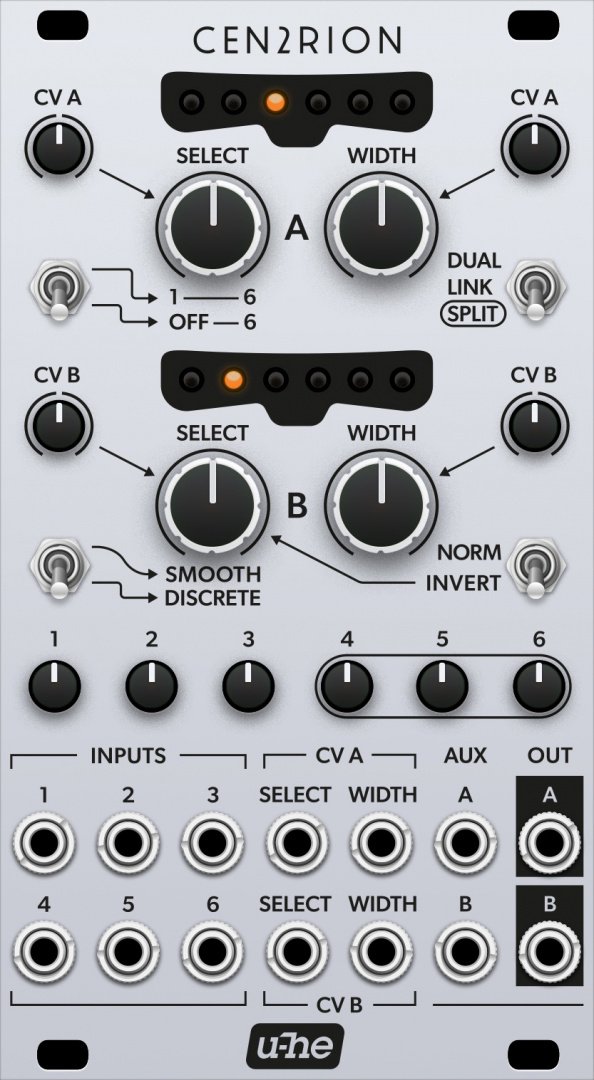

6-in / 2-out Scanning Mixer

Cen2rion is a dual-layer scanning mixer designed for both audio and CV signals. It features two independent layers (A and B) that share six inputs but have separate mono outputs. Each layer uses just two controls (SELECT and WIDTH) to scan and mix input signals, with smooth transitions to avoid clicks thanks to vactrol-style release curves.

Key Features:

  • Six inputs, two outputs (DC-coupled for audio and CV operation)
  • Dual Layers: A and B operate independently or in coordinated modes

Three Main Operating Modes:

  • DUAL: Independent control of each layer
  • LINK: Layer B offsets follow Layer A’s settings—ideal for stereo imaging
  • SPLIT: Inputs divided (1–3 for A, 4–6 for B) for stereo pairing

Blend Modes:

  • SMOOTH: Gradual crossfades between channels
  • DISCRETE: Step-like channel switching

Additional Features:

  • CV Control: Bipolar CV inputs with attenuverters for SELECT and WIDTH on both layers.
  • Selectable Input Range: Choose between full-range (1–6) or muteable (OFF–6) operation.
  • Layer B Inversion: Invert selection logic for creative mix inversions.
  • Per-Channel Attenuators: Logarithmic response optimized for audio signals.
  • AUX I/O Jacks: Configurable as direct signal inputs or grouped outputs (1–3 for A, 4–6 for B).
  • NORMALS Connector: Back-panel link to compatible modules for internal routing.
  • DC-Coupled for audio and CV
  • Voltage Range: ±12V input, ±5V effective modulation
