Dimensions
10 HP
25 mm deep
Current Draw
31 mA +12V
17 mA -12V
0 mA 5V
Price
$105 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

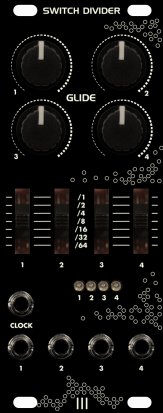

Performance oriented Clock divider.

Tre Modular - Switch Divider is a versatile quad clock divider. It accepts one clock input and has four outputs. Each of the four channel divisions can be set by sliding switch. This makes it ideal for live performances and dynamic patches that require change of the rhythm on the go.

Switch divider outputs 0 to +5v signal which is commonly accepted as clock input for a wide range of music gear.

Another feature of this module is its glide functionality. Each channel has its own dedicated glide knob that controls the rise and fall of the generated square wave. This makes it more useful as a modulation source than traditional clock dividers.

As any clock divider Switch Divider can also be used as a crude sub oscillator.

Switch divider accepts wide range of clock inputs from +2v to +10v
Switch divider accepts any kind of signal that goes above +2v as clock inputs. It internally converts that signal to square wave that drives the clock divider circuit.

https://tremodular.com/product/switch-divider/


submitted May 19th, 16:38 by TreModular | last Change Sep 5th, 17:01 by TreModular
