Dimensions
20 HP
40 mm deep
Current Draw
190 mA +12V
50 mA -12V
0 mA 5V
Price
$550 Price in €

This Module is currently available.

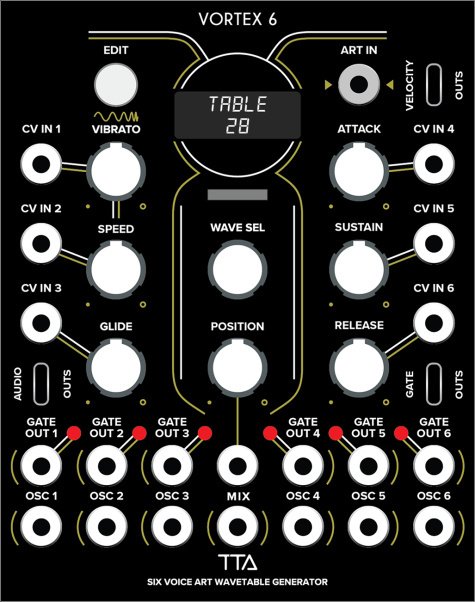

Polyphonic 6-Voice ART Wavetable Oscillator

Is a polyphonic 6 voice ART wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2. Dozens of wavetables are provided internally and user tables can be loaded via SD CARD. VORTEX6 has built in Vibrato, Glide, and six wave table scrolling envelopes all with CV. ART in jack and a built-in voice manager take care of incoming notes and distribute them to audio gate and velocity outs either on per voice 3.5mm jacks or the Polytip jacks. Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS and HEXAGAIN and a few Polytip patch cables make a complete six voice polyphonic synth. Alternatively VORTEX6 can be patched to discrete mono modules or use its voice mix out for paraphonic soundscapes.

Released: 1Q 2025

https://tiptopaudio.com/art

https://tiptopaudio.com/art/modules-details/#polytip-id

https://tiptopaudio.com/manuals/Tiptop_Audio_ART_vortex_6.pdf

https://tiptopaudio.com/art/modules-details/#vortex6-id


submitted May 14th 2023, 18:48 by circuitburst | last Change Apr 19th, 23:04 by trekkie
