Available as an assembled Module and as a DIY project.
This Module is currently available.

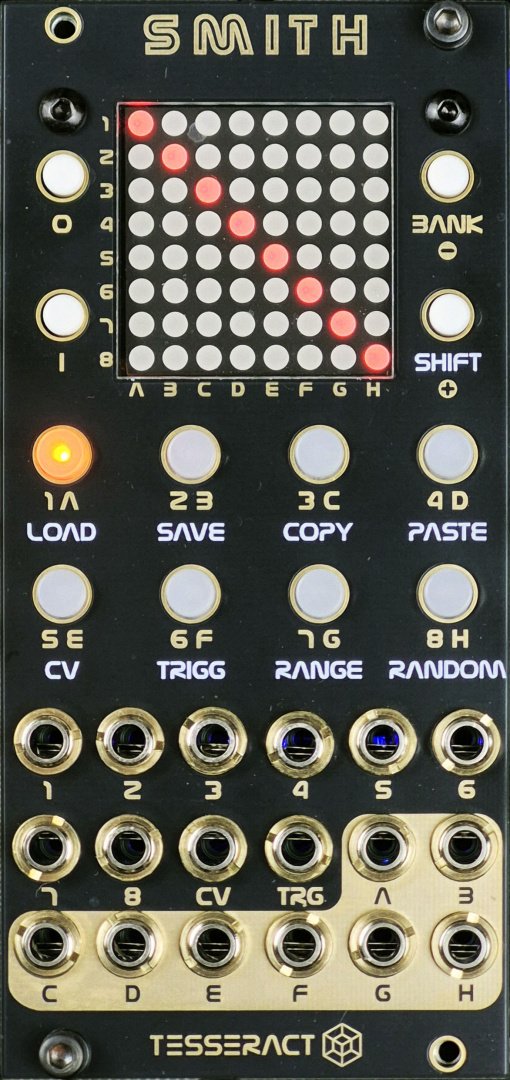

8x8 Programmable Matrix
Smith it’s an 8 inputs & 8 outputs precision buffered matrix with presets.
Each of the 8 outputs can take the signal from any of the 8 inputs, allowing over 16 million possible combinations.
This is not a mixer, the same input can be routed to many outputs, but several inputs can’t be present at the same output simultaneously.
The module works with both audio and CV signals, ins & outs have ±10 volts range and minimum offset (1 millivolt approx.), which makes it perfect for distributing V/Oct signals too.
8 scenes that can be accessed through the dedicated push buttons but also by CV and trigger.
8 banks (with 8 scenes each, 64 scenes per preset).
8 persistent presets (with 8 banks of 8 scenes each).
