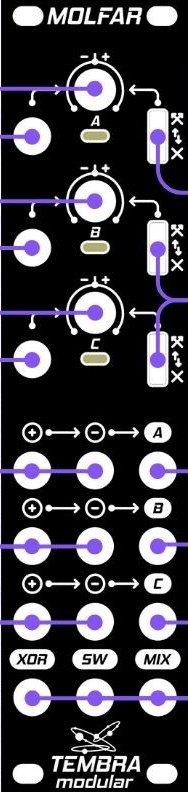

VC Xfader

Xfader/Polarizer/Switch/Attenuverter/Mixer/VCA

1.INPUTS
⊕ inputs react to positive cv
⊖ inputs react to nevative cv
⊕ inputs sent to ⊖ inputs via inverter
also all ⊕ inputs are normalized to each other

2. A|B|C controls
   Jacks - Cv inputs
   Potentiometers - manual offset controls

3. MODE SWITCH
   Upper position - crossfader
   Center position - dual VCA
   Bottom position - mute

4. OUTPUTS
   A|B|C - channel outputs
   MIX - A+B+C output
   SW - voltage controlled switch:
   • A and B - inputs
   • C - control voltage, positive = A, negative = B
   XOR - xor like output:
   • A and B - inputs
   • C - cv, switches between A+B sum and A+B xor
