Dimensions
4 HP
64 mm deep
Current Draw
25 mA +12V
25 mA -12V
0 mA 5V
Price
$160 Price in €

This Module is currently available.

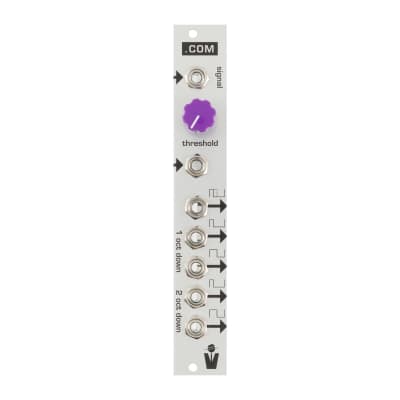

Pulse converter and suboctave divider

overview
The .COM module contains comparator and divider circuits, suited for audio signals. They generate square waves out any audio signal and create four types of sub-octaves, PWM is possible as well.

technical details
The input signal is being passed thru a comparator that creates square waves. Depending on the position of the threshold control and the according threshold CV the pulse width of the signal changes and we get a pulse width modulation. A number of different sub-octaves is generated from the input as well. Follwing outputs are available:

output 1: direct comparator output. 1%-49% pulse width
output 2: one octave below input, 50% pulse width
output 3: one octave below input, 25% pulse width
output 4: two octaves below input, 50% pulse width
output 5: two octaves below input, 25% pulse width

One audio input. One comparator output. Four suboctave outputs
