This Module is currently available.

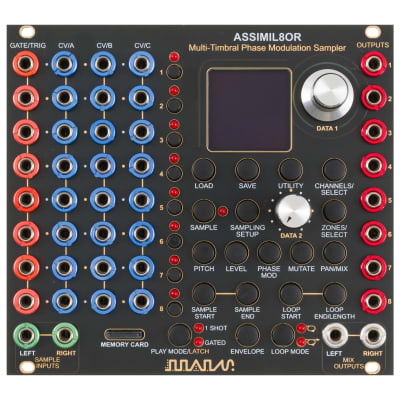

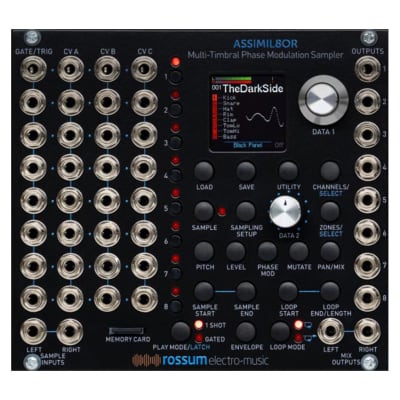

Multi-Timbral Phase Modulation Sampler
Designed to provide a powerful, flexible sampling engine for modular synthesis, the ASSIMIL8OR Multi-Timbral Phase Modulation Sampler module is the latest incarnation of Dave Rossum’s decades-long pioneering of affordable professional sampling technology.
ASSIMIL8OR provides eight independent channels of sampling with sound quality that can range from extremely hi-fi to low fi, all with extensive real-time CV control.
Key ASSIMIL8OR features include:
Assimil8or Specifications
SAMPLE MEMORY
2,300 seconds at 48kHz mono, freely allocatable between the 8 channels
SAMPLE RATES
48kHZ, 96kHZ, 192kHZ
A/D & D/A
24 Bits
INTERNAL PROCESSING
32 Bits
LATENCY
100 microseconds at the Mix Outputs
180 microseconds at the Individual Outputs
INPUTS
Sample L/R
2x 3.5mm mono socket
100kΩ Input Impedance
Gate/Trigger 1-8
8x 3.5mm mono socket
100kΩ Input Impedance
1.6V threshold
Control Voltage A 1-8
8x 3.5mm mono socket
100kΩ Input Impedance
96 kHz sample rate
Anti-alias filtered to 20kHz bandwidth
Control Voltage B&C 1-8
16x 3.5mm mono socket
100kΩ Input Impedance
48 kHz sample rate
No anti-alias filtering
OUTPUTS
Mix Outputs L/R
2x 3.5mm mono socket
1kΩ Impedance
Individual Outputs
8x 3.5mm mono socket
1kΩ Impedance
POWER REQUIREMENTS
+/-12V via 16-pin, Doepfer-style connector
CURRENT DRAW
220mA +12V, 30mA -12V
DIMENSIONS
28HP (W); Panel to power connector (with connector plugged in) 25mm (D)
SUPPLIED ACCESSORIES
1x Micro SD card
1x 16-pin, Doepfer-style cable
4x M3 screws
4x M2.5 screws
4x Nylon washers
1x Quickstart Guide
