Dimensions
28 HP
31 mm deep
Current Draw
50 mA +12V
12 mA -12V
0 mA 5V
Price
$359 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

semi-modular analog acid bassline synth

TECHNO BABBLE

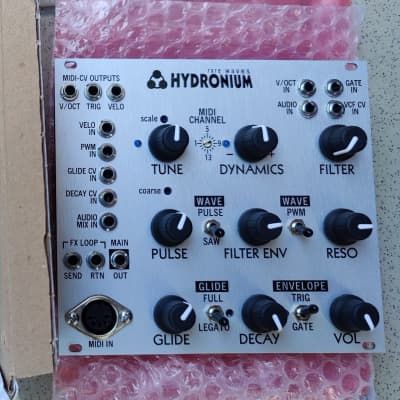

The Rare Waves Hydronium is a semi-modular synthesizer with unmistakable true analog tone. Its rich array of CV patch points can interconnect with other analog synthesizers to inspire your music deeper and further in the creative zone.

While it is designed to fulfill the role of a TB-303 inspired acid synth, Hydronium is not a clone circuit. Instead it is an all-new design with its functions re-imagined and extended a little beyond what you might expect from the clone genre.

Its tone is based on a single VCO, a resonant low-pass filter, and a simple decay envelope. And as you’d anticipate of any acid synth, it has programmable glide (pitch slide) and dynamic accents for individual notes.

Hydronium’s classic tone is a natural choice for sequenced basslines. Switch the envelope to gate mode, and it also serves as a lead synthesizer when you need a bright, clean sawtooth or pulse waveform in the mix.

It can be played either by MIDI control or CV-Gate. In addition, its built-in MIDI-to-CV converter with post-glide v/oct output lets you use it as a bridge between your MIDI controller and other analog synthesizers.

Hydronium features an audio effects loop that is positioned between its filter and VCA. This is a good place for distortion effects, phaser, and certain other effects that tend to increase the noise floor when patched to a synth’s line out. The pre-VCA effect return silences the self-noise from the effect, preserving full dynamic range even when you bend its tone with a high-gain fuzz pedal, for example.

http://rarewaves.net/products/hydronium/
