This Module is currently available.

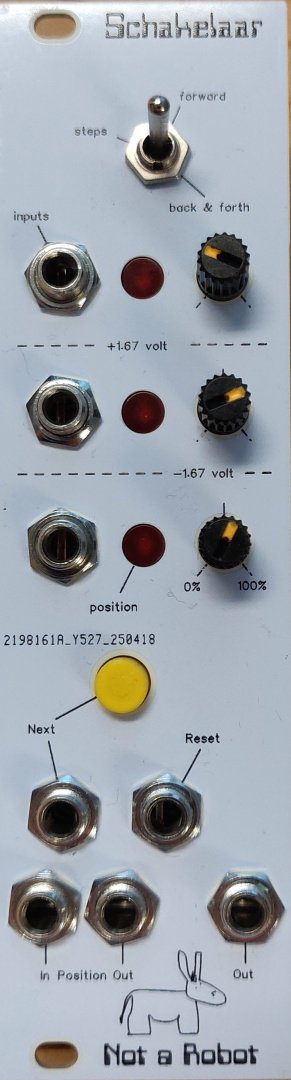

Voltage controlled 3 position (sequential) switch
A Voltage controlled 3 position (sequential) switch. Where the inputs can be attenuated and are normalled to 5v.
The position is selected by control voltage or a push button.
"+": above +1.7 volts.
"o": between -1.7 and + 1.7 volts.
"-": below -1.7 volts
The voltage range for the 3 inputs is -5 to +5 volt. when higher, it can be attenuated to prevent clipping.
There is a counter that send its voltage to the normal of the position input. You can set it to 3 or 4 steps using the toggle switch and it can be triggered using the push button or using the clock input. It also has a reset input.
The position CV has a multiple, so it can be passed thru to another module.
