Offer Details

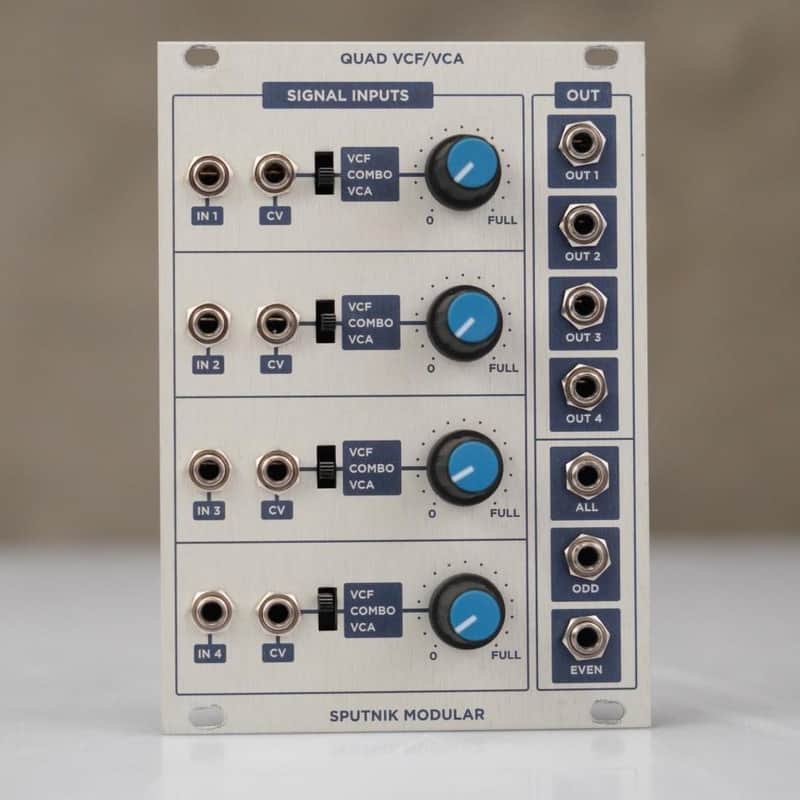

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition. INVENTORY #58581 BRAND: Sputnik Modular MODEL: Quad VCF / VCA FUNCTION: Eurorack Synthesizer Module PRODUCT DESCRIPTION: This listing is for a Sputnik Modular Quad VCF / VCA Eurorack Synthesizer Module. The Sputnik Modular Quad VCF / VCA is a versatile four-channel Eurorack module that functions as independent voltage controlled filters (VCFs), voltage controlled amplifiers (VCAs), or a combination of both (low-pass gates), based on the classic Buchla 292 design. SPECS: Three Modes Per Channel: Each of the four independent channels has a switch to select between: VCF mode: Acts as a non-resonant -6dB low-pass filter, with the cutoff frequency controlled by the knob and a unipolar CV input. VCA mode: Functions as a standard VCA, with the control knob adjusting the gain, which can range from -120dB to +3dB. This mode is fast enough for audio rate amplitude modulation (AM). Combo mode: Combines the VCF and VCA functions simultaneously, where the CV input or control knob affects both amplitude and timbre, producing a natural, acoustic-instrument-like response. Mixing Capabilities: The module features multiple outputs beyond the individual channel outputs, allowing for flexible signal routing and dynamic mixing: Individual outputs for each of the four channels. ALL output for a summed mix of all four channels. ODD output for a summed mix of channels 1 and 3. EVEN output for a summed mix of channels 2 and 4. Width: 18HP Depth: 28mm Current Draw: 50mA @ +12V, 70mA @ -12V Signal Input: Audio inputs are AC coupled, designed for audio processing. CV Input: Expected to be a maximum of 5V. ACCESSORIES INCLUDED: This item comes as seen in photos and includes a module box plus... Pin Eurorack Power Cable (4) Eurorack Screws & Washers (3) Tiptop Stackcable Stacking Patch cables UNPACKAGED WEIGHT: 1 lbs. UNPACKAGED DIMENSIONS: 7" x 4" x 5"
