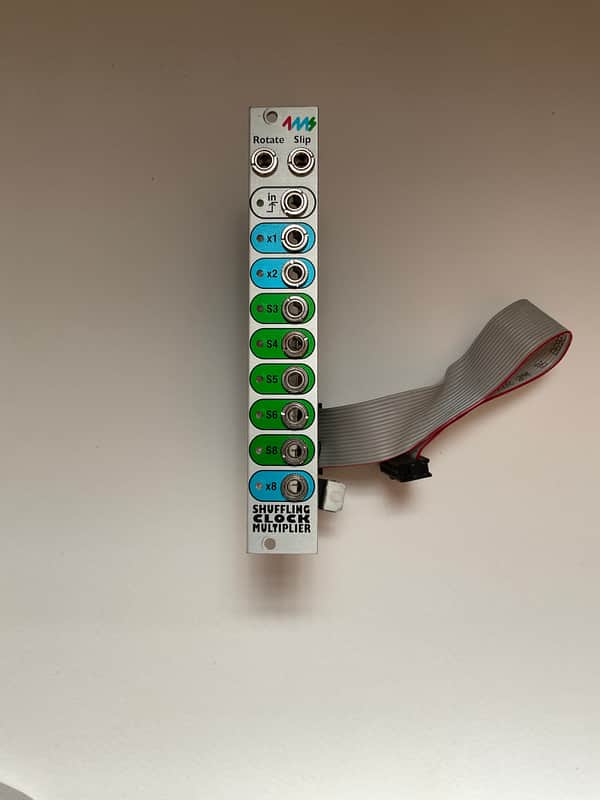

The Shuffling Clock Multiplier (SCM) produces eight multiplied clock tempos from a single input clock, ranging from x1 to x8 (x32 by using the Breakout). Some of the outputs can be shuffled/swung. The amount of shuffle is controlled by a CV Slip jack. A Rotate CV jack re-assigns the multiplication number of each jack. More features of the SCM can be controlled by the SCM Breakout, available in my other listings.Basic Features:Multiply-by-1 to Multiply-by-32, on 8 output jacksFive Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)Three steady clock outputs (x1, x2, and x8), which are not effected by Slip/Shuffle/Skip effectsCV Rotate jack to shift multiply-by amount on all jacksCV Slip causes particular beats to land ahead in timeConnects to the SCM Breakout for controlling more features: Pulse Width, Shuffle pattern, Skip, Re-sync, Mute, and 4x FastISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming codeMaximum input frequency 3kHzElectrical and Mechanical Specifications:Module size:4HP Eurorack format module1.39" (35mm) deepPower consumption:5VSEL Jumper set to INT:33mA maximum power draw from +12V rail0mA max on the +5V rail4mA maximum power draw on the -12V rail 5VSEL Jumper set to EXT:19mA maximum power draw on the +12V rail14mA max on the +5V rail4mA maximum power draw on the -12V rail
