Resonant 24dB/oct lowpass filter
https://www.ericasynths.lv/shop/eurorack-modules/by-series/fusion-series/fusion-vcf3/
If you had an Unicorn Account you could see a chart with the price development of this module and the average price asked for this module.

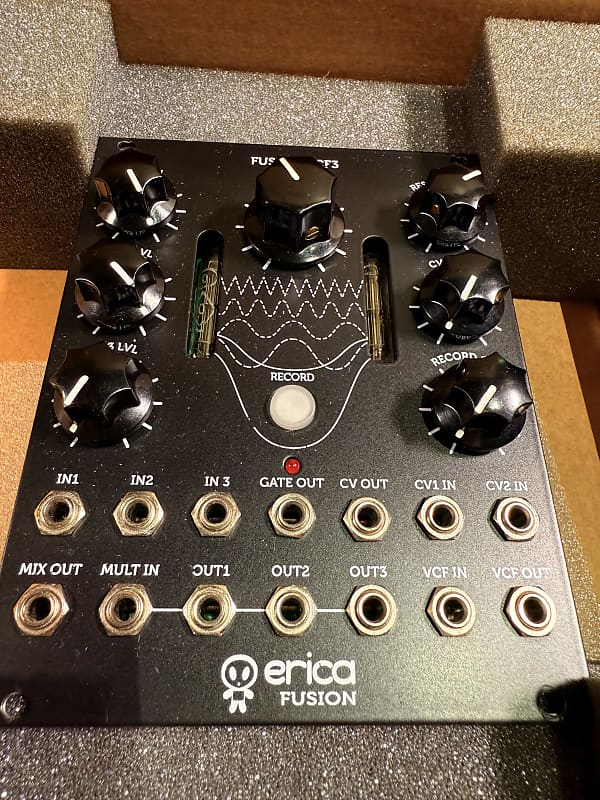

Fusion VCF3Erica SynthsManufacturer PageCV ModulationExpressionFilterMixerMultipleTubeResonant 24dB/oct lowpass filterThe Fusion VCF3 is resonant 24dB/oct lowpass filter of unique design that combines vacuum tubes and vactrols, providing distinct, soft filtering. For more versatility, the independent audio mixer and buffered multiple is incorporated in the module, and, most importantly – a CV recorder that records motion of the potentiometer, so you can design advanced modulation patterns.FeaturesFull analogue designVacuum tube and vactrol based filter circuit. Because of vactrol lag, the VCF will not accept audio rate modulation, the maximum modulation frequency is 10HzInput signal mixer with gain 2 for signal overdriveBuffered multiple for splitting audio and CV signalsPotentiometer motion record unit with CV and gate outputsRecorded CV multiplication and divisionTechnical Specifications:Filter slope 24dB/octAudio Input level 10VptpCV input level -5V - +5VCV Output level 0V - +5V
This offer was fetched from reverb.com. You cannot contact the seller via ModularGrid. You have to visit their site.
