Dimensions
18 HP
Current Draw
109 mA +12V
32 mA -12V
0 mA 5V
Price
$260 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

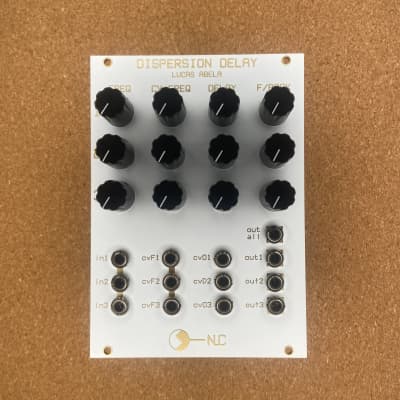

Vactrol-based bandpass filter delay

This module is based on ideas suggested by Lucas Abela.

It is three vactrol-based bandpass filters in parallel, each filter is fed into a voltage controlled delay stage. The outputs are available individually or there is an OUT ALL where all 3 signals are mixed.

Me being me designed the delays to go into stutter/zipper/breakdown territory to create the usual noise I love. If desired the delays can be built to remain in their normal operating regions.

PCB set = USD 25
Panel = USD 26
Assembled = USD 260

https://www.nonlinearcircuits.com/modules/dispersion-delay
