Dimensions
20 HP
24 mm deep
Current Draw
20 mA +12V
0 mA -12V
0 mA 5V
Price
$215 Price in €

No info about availability.

Specs are approved by the manufacturer

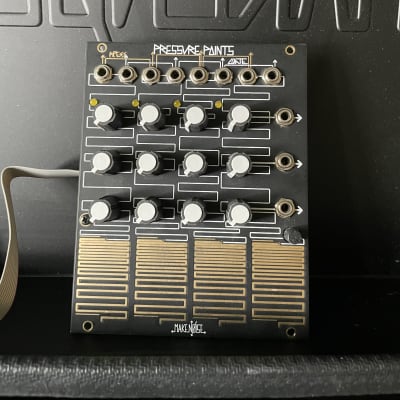

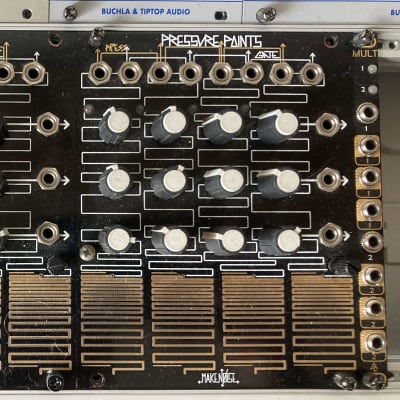

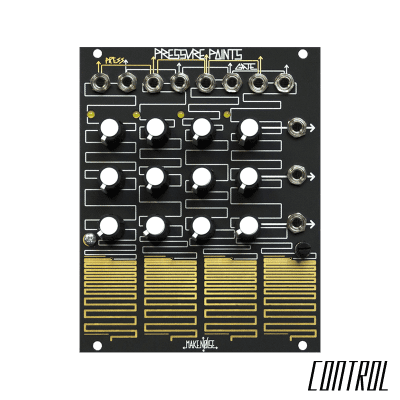

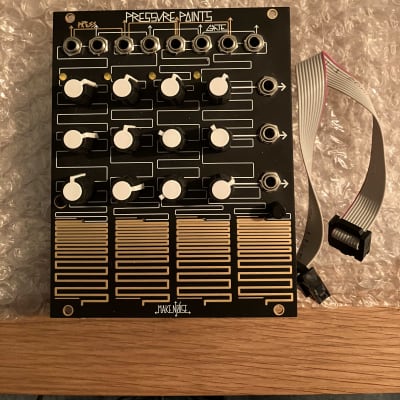

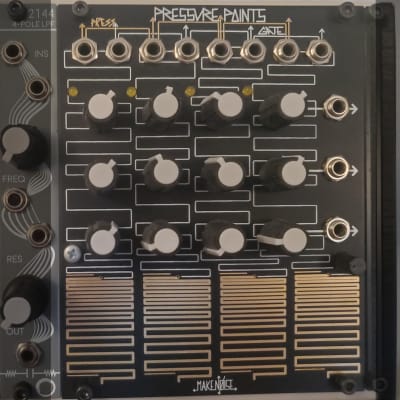

Touch Controller / Manual Sequencer

Pressure Points is a controller module, an analog sequencer that is played by hand. Touching the gold plated copper wires (aka Touch Plates), you become part of the circuit, generating a gate signal (Gate OUT), a control signal proportional to the amount of pressure applied (Press OUT) and the 3 Tuned Voltages for the activated Stage.

The Gate signals may be used to turn portions of a patch ON/ OFF, generate Timing Events within a patch or to Trigger a Function Generator such as MATHS

The PRESSure signals may be used to add expression to a patch by varying Pitch or Timbre in real-time, based upon the artist's input

The Tuned Voltages may be used to play the Pitch of a sound in a traditional melodic fashion, Program Chords or Timbral shifts (aka Presets)

Up to 6 may be CHAINed together (using CHAIN Cable), to create controllers of varying size and complexity

All outputs are capable of driving a passive 4 way mult without loading effects (no buffered mult needed)

Expansion port allows for sequential control via the BRAINS expander module

http://www.makenoisemusic.com/pressurepoints.shtml


Ø 4.41 (174 Votes) Average Rating
submitted Oct 12th 2012, 23:40 by makenoise | last Change Sep 11th 2015, 19:49 by makenoise
