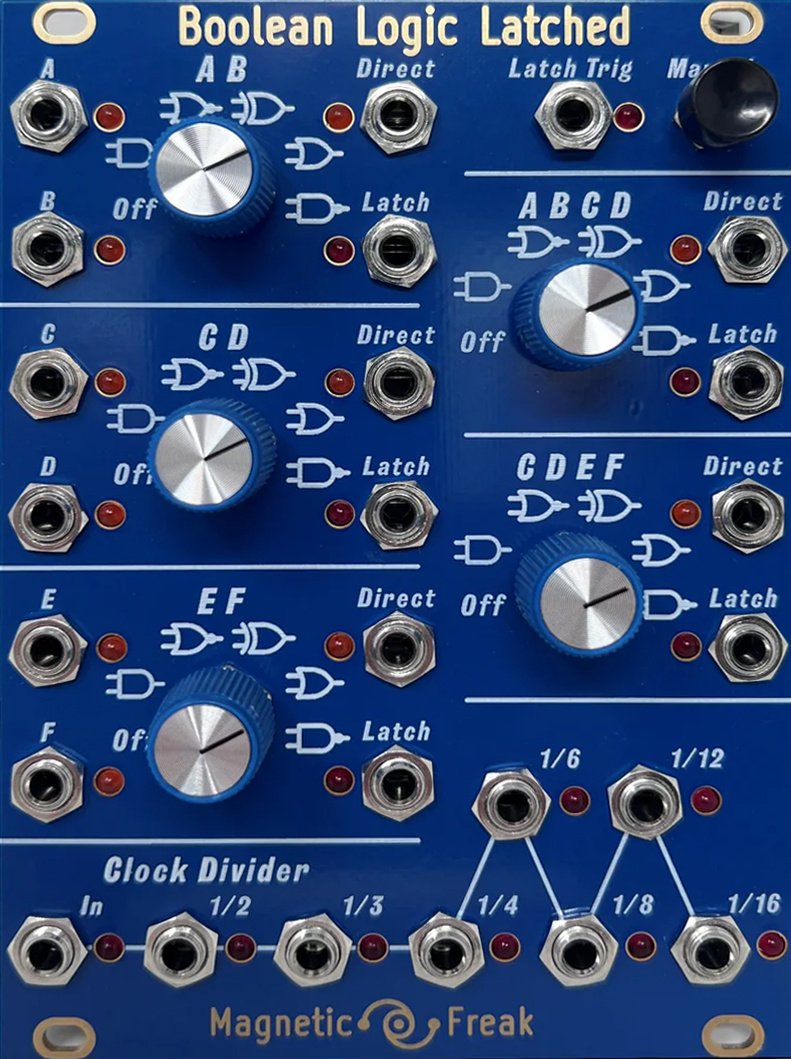

Boolean Logic Latched offers all possible kinds of existing boolean logic operations. Seven available gate operators enable complex Boolean equations for producing all kinds of rhythm sequences from simple cycling logic signals. Its clock divider lets users derive multiple clocks from a single one and can be patched as a source for the gate operators.

• Power supply consumption: +12V at 50mA
• GATE IN range: 0V to 10V (except negative) detection threshold 3V
• GATE output: 10V pulses are emitted
• Each connector has a corresponding LED to visualize timing.
• Panel width: 18HP (91.44mm)
• Sloted fixation holes diameter: 3.2mm
• Minimum depth needed in the boat: 28mm
