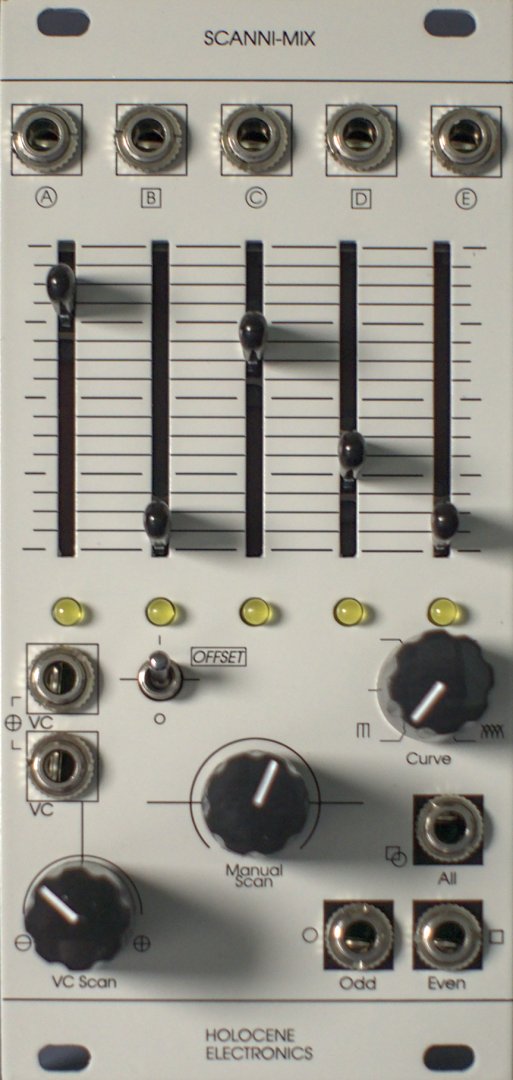

SCANNI-MIX

SCANNI-MIX is a 12HP 5 input Voltage-Controlled Scanning Audio/CV Mixer and Panner.

• 5 Audio/CV Inputs:
with dedicated attenuator sliders

• Offset Switch:
Offset normalizes a DC voltage to all inputs when nothing is connected. Useful for use as a wave shaper or scannable cv source

• Scan VC 1:
Main voltage control for scanning position

• Scan VC 2:
Adds to Scan VC 1 for dynamic motion

• Attenuverter:
Adjusts Scan VC 1’s polarity and level

• Curve Knob:
Controls scanning shape:
CCW = focused (1–2 channels)
CW = wide (3–5 channels)

• Outputs:
All: Scans through all inputs
Odd: Outputs only odd- numbered inputs (1, 3, 5)
Even: Outputs only even- numbered inputs (2, 4)
