6 HP
27 mm deep
Current Draw
30 mA +12V
30 mA -12V
0 mA 5V
$165 Price in €

This Module is currently available.

Specs are approved by the manufacturer

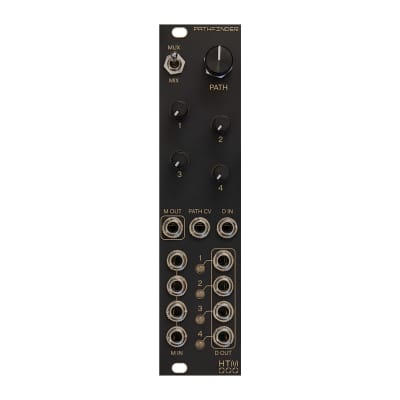

Audio & CV routing utility

Complex FX chains, creative modulation or audio-rate waveshaping: Pathfinder is a highly versatile signal routing module that has its place in any patch.

Pathfinder has two complementary, CV controlled routing channels :

  • The M channel can be used as a multiplexer or as a mixer (depending on the switch position). In multiplexer mode, one of the four M inputs is routed to the M output. Each M input has a dedicated attenuator.
  • The D channel has the opposite behavior, which is known as a demultiplexer. The D input is routed to one of the four D outputs, while the other three are set to 0V.

The Path knob and CV input set which I/O is active for both channels.


submitted May 13th, 17:34 by halftimemodular | last Change May 15th, 12:57 by halftimemodular
