Dimensions
26 HP
40 mm deep

Module is a 1U tile in Intellijel format

Current Draw
40 mA +12V
0 mA -12V
0 mA 5V
Price
$225 Price in €

This Module is currently available.

Specs are approved by the manufacturer

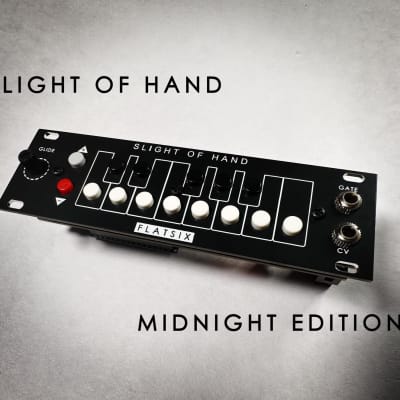

CV Keyboard Controller in 1U (Intellijel) Format

Sight Of Hand is is a 1U (Intellijel format) Eurorack module by FlatSix Modular that functions as a monophonic CV keyboard.

It's a play on words of the phrase "Sleight of hand" due to its "slight" footprint.

It's designed to be extremely playable with responsive, light touch, tactile switches for the keys, a wide portamento/slew range which is adjustable in real-time, as well as octave up and down buttons.

The Slight Of Hand outputs 1 volt per octave out of its CV out jack and a 5-volt gate out of the trigger jack, so it can easily be connected to an ADSR envelope.

This module is a part of the emerging Nocturne Alchemy Platform - a flexible eurorack module series that shares the same robust Arduino-based hardware, allowing one to effortlessly swap functionalities through our intuitive web loader. By purchasing one module, you gain access to a full range of freely available firmwares, including our current creations, Slight of Hand and Arp Of Darkness, as well as others planned for future release! It's like getting multiple modules for the price of just one!

Features Include:

  • Light touch, tactile switch keyboard that covers one octave + one note (Low C & high C)
  • 4 octaves of control from C0 to C4
  • Portamento / Slew Control Potentiometer
  • 5v Gate Out
  • CV Out - 1V/0
  • Octave up and down buttons
  • User-friendly calibration mode with tuning for each note across 4 octaves & EEPROM memory

Links:
* FlatSix Modular Homepage
* Project Wiki on GitHub
* FlatSix Modular Shop on Reverb
* YouTube Demo


https://flatsixmodular.com/
