Dimensions
6 HP
24 mm deep
Current Draw
0 mA +12V
0 mA -12V
36 mA 5V
Price
$99 Price in €

This Module is currently available.

Specs are approved by the manufacturer

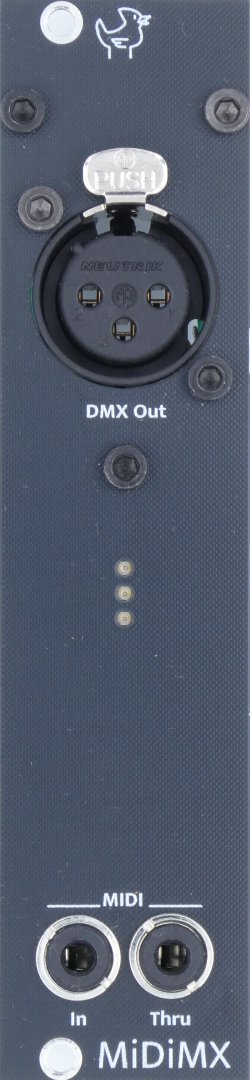

MIDI to DMX Converter

Entineering MiDiMX is a module for Eurorack synthesizers that converts MIDI to DMX512. Create music-synchronized light shows with the tools you are already familiar with as a musician: A MIDI sequencer, a DAW or manually via MIDI keyboards.

Each of the 128 possible MIDI notes from C-2 to G8 is assigned to one DMX channel. MIDI velocity and polyphonic aftertouch translate to DMX channel values, i.e. brightness.

Features of Entineering MiDiMX include:
* Converts MIDI Note On, Note Off and Polyphonic Aftertouch messages.
* 128 MIDI notes translate to 128 DMX channels.
* Selectable MIDI channel

Watch Entineering MiDiMX (in an early version) control lighting fixtures and smoke machines, all through Ableton Live:

https://shop.entineering.eu/product-en/entineering-midimx-537521


submitted Yesterday, 21:03 by entineering | last Change Yesterday, 21:18 by entineering
