Dual Voltage Controlled Switch

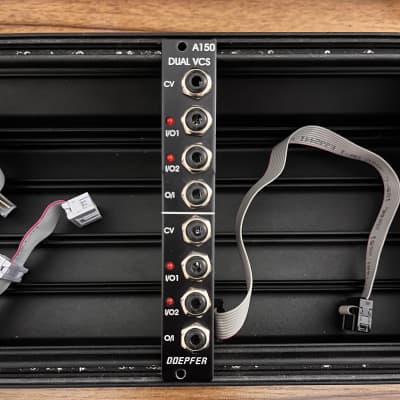

Module A-150 (Dual VCS) contains two separate voltage-controlled switches.
Each switch has a control voltage input, a common Out / Input, and two In / Outputs. The switches are bi-directional: they can work in both directions, so can connect one input to either of two outputs, or either of two inputs to one output. Voltages in the range -8V...+8V at the O/I resp. I/O sockets can be processed by the module (v2004 or later: -12V...+12V)
CV low < ~3.6 V
CV high > ~3.6 V
Two LEDs show which in / output is active (ie. which is connected to the common out / input).
Doepfer A-150
Similar modules: A-152 Voltage Addressed Track&Hold / Switch (Multiplexer) / Digital Outputs
