Dimensions
8 HP
40 mm deep
Current Draw
154 mA +12V
15 mA -12V
0 mA 5V
Price
$466 Price in €

This Module is currently available.

Specs are approved by the manufacturer

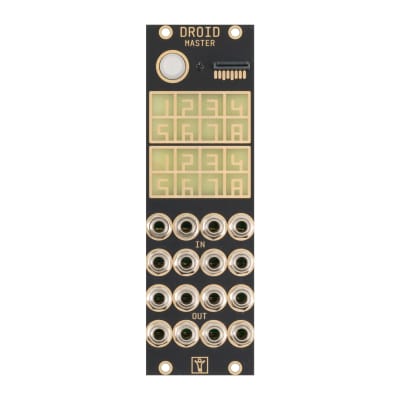

Universal CV Processor

The DROID is a very flexible generic CV processor. It has 8 CV inputs and 8 CV outputs, all ranging from -10V to +10V. The DROID can do almost any CV task you can imagine, such as sequencing, melody generation, slew limiting, quantizing, switching, mixing, working on clocks and triggers, creating envelopes and LFO or other fancy voltages, or any combination of these at the same time. While doing this, is very precise both in voltage and in timing.

The Alternative: If you don't need CV inputs but want MIDI connectivity, have a look at the MASTER18

Now you can attach several different DROID controller modules, such as the P2B8, the P10, the B32, the P4B2 or the M4 in order to get direct hands on access to all parameters and values of these patches.

Easily create your desired DROID patch utilizing our simple and easy-to-use editor with built in tutorials - the DROID Forge. It is available for Windows and Mac (both Apple Silicon and Intel).
The file created with the DROID Forge is a simple text file named "droid.ini" and is located on a micro SD card.

Hint: If you'd rather use a simple text editor to alter the "droid.ini" pick one you like and go for it.

The building blocks of a DROID patch are called circuits. Every type of circuit performs some basic task. Just like a Eurorack module each ciruit has inputs and outputs. You can wire these either directly to the eight inputs and/or outputs and even connect them internally. Every parameter can be CV controlled. You can attach up to 16 controllers to your DROID. Controllers have faders, buttons and potentiometers and allow you to map assign to any parameter or function you like. This gives you direct control over your DROID patch and allows you to create you own instrument.

Here are a few examples of what your DROID can be for you. As long as you don't run out of inputs and outputs or RAM you can use as many of these functions (and/or multiple instances of them) at the same time in one DROID. Some of the magic lies in connecting them internally to create more complex CVs.

  • Envelope generator
  • Melody sequencer
  • Trigger sequencer
  • Random / Pseudo random melody or trigger generator
  • Precision adder
  • Slew limiter
  • Clock divider and multiplier
  • Logic gate
  • CV looper
  • Sample and hold
  • Euclidean rhythms generator
  • Quantizer
  • Addressable and clockable CV switch
  • CV mixing and routing matrix
  • LFO
  • Bernoulli gate
  • Mathematical operator
  • ... and many many more

You can use these circuits either directly - just like normal Eurorack modules - or combine them internally in order to implement more complex functions. Then you can assign pots and buttons of your controllers for switching, tuning and live performing with these. Basically you can transform your Eurorack modular system into your own custom instrument. Or you simply use the DROID as a replacement for several utility modules, because it is very space efficient.

Expanders:

  • The P2B8 is a controller with two pots and eight buttons - for free assigment. You can attach up to 16 of these to one Master.
  • The P4B2 is a controller with four pots and eight buttons.
  • The B32 is a controller with 32 buttons.
  • The P10 is a controller with two large and 8 small pots.
  • The M4 is a controller with 4 motorized faders.

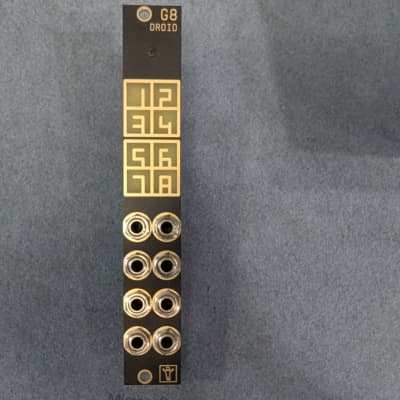

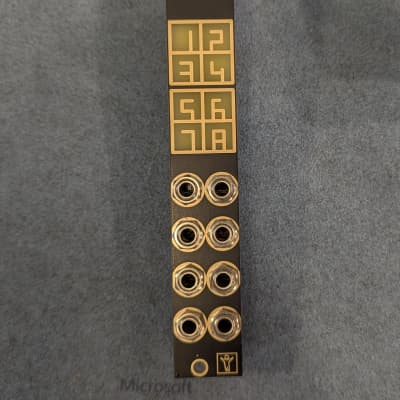

  • The G8 is an expander with 8 additional gate inputs / outputs.
  • The X7 gives full MIDI connectivity via DIN and USB, also remote access to the SD card
  • Further expanders are under development

The DROID and its expanders are available at: https://shop.dermannmitdermaschine.de/
Find our dealers worldwide here

The latest firmware as well as the user manual and the DROID Forge can be downloaded here: https://shop.dermannmitdermaschine.de/pages/downloads
