Dimensions
20 HP
40 mm deep
Current Draw
40 mA +12V
40 mA -12V
0 mA 5V
Price
$903 Price in €

This Module is currently available.

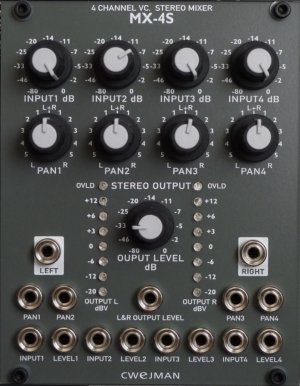

Stereo Panning mixer

The MX-4S is a voltage controlled stereo mixer with four independent inputs. All parameters such as input gain, panning and output gain (both left and right channels output level are ganged) are controlled manually by knobs or associated CV inputs.
The mixer accept both DC and audio signals so it can be used for audio signals and control signals.
The LED bars displays the outgoing signals strength. The performances of the mixer such as low distortion and low noise, are superior thanks to "the state of the art" voltage controlled devices.
