Dimensions
6 HP
22 mm deep
Current Draw
41 mA +12V
32 mA -12V
0 mA 5V
Price
$272 Price in €

This Module is currently available.

Specs are approved by the manufacturer

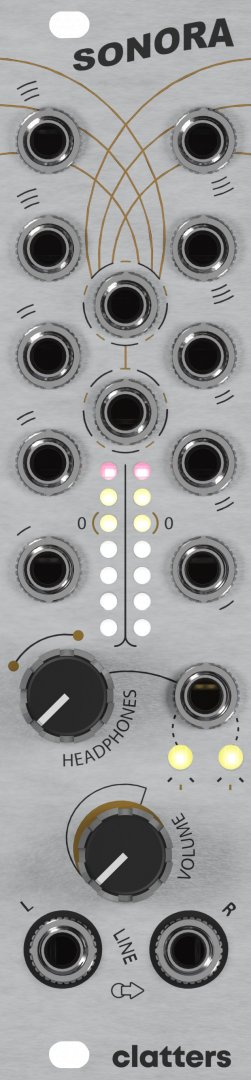

Spectral mixing output module

Sonora is a spectral mixing output module designed to be the ultimate sound stage of your eurorack setup. A place where all your mixes meet and find a stereophonic solution for your final track thanks to its twelve fixed panning inputs that allow you to give each track its own space and importance in the stereo field.
While being a 12 inputs summing mixer, Sonora also features a LED meter, a soft clipping limiter circuit at the output stage, a headphone output section with loudness indicators and 3.5mm pro line output jacks.

Features

  • 12 pre-panned audio inputs:
    • 2 hard left inputs;
    • 2 hard right inputs;
    • 2 mid left inputs;
    • 2 mid right inputs;
    • 1 low left input;
    • 1 low right input;
    • 2 mono inputs;
  • 3.5mm stereo headphones socket (300mW headphone
    amp @200Ω impedance) with dedicated volume control and stereo LEDs loudness indicators;
  • 3.5mm pro line outputs jacks (+4dBu);
  • final volume control;
  • stereo LEDs meter with 0dB reference indicator;
  • soft clipping circuit;

Find out more about Sonora: https://clattersmachines.com/sonora-overview/

https://clattersmachines.com/prodotto/sonora/
