Dimensions
6 HP
30 mm deep
Current Draw
10 mA +12V
0 mA -12V
0 mA 5V
Price
$55 Price in €

This Module is currently available.

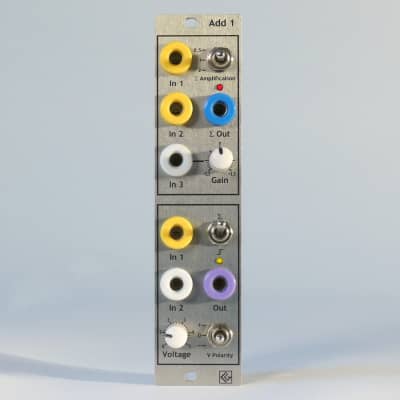

Dual Precision Adder/Comparator with each 3 Inputs

2 Precision adders/comparators each with 3 inputs suitable for audio and/or CV signals. The switch position decides which mode is selected. In Σ mode, the circuit functions as an adder with amplification = 1,00. By patching one signal to 2 or 3 inputs, amplification factors of ·2,00 or ·3,00 can be set.
In ‚Comp‘ mode, the circuit works as a comparator with a slightly Schmitt trigger-like characteristic. Depending on the level of the inputs, the output voltage is switched between either +5V or -5V, suitable as gate/trigger, square wave/pulse audio signal etc. The threshold level of switching between these voltages is ≈0V; e.g. for an input sum signal > 0V, the output signal will be +5V, for an input sum < 0V it will be -5V. So, the threshold level can be shifted by applying an offset or control voltage on one of the inputs.
Applications such as pulse width modulation or +/- voltage detection can be easily realized.
