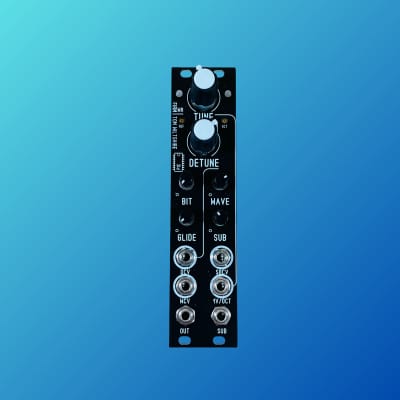

TW DCO

6hp version of Tom Wiltshire's voltage-controlled digital oscillator

PIC BASED DIGITAL WAVE TABLE OSCILLATOR BY TOM WILTSHIRE.

This is a digital vco with on board wave table and sub oscillator outputs that are audible. You use this as a sound source.

The Tune Knob Parameter is Quantized. As you turn the knob it locks to musical chromatic scale. Very musical module.

CV Input sources:
Wave table CV
Detune CV
1v / Octave Pitch input CV

Outputs: Wave out, Sub out.

-10 Octave note range from 8.18Hz to 8372Hz
-16 Waves in the table
-8 Sub Osc waves
-Bit Crush Control, from 8-bit to 1-bit. 8 bit 62.5KHz Sample Rate.
-On board Glide effect parameter.
