Dimensions
4 HP
35 mm deep
Current Draw
24 mA +12V
26 mA -12V
0 mA 5V
Price
$133 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

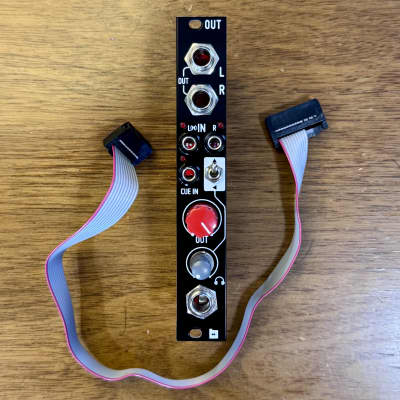

Output Interface and Headphone amp

Our new Output Module is designed to be the master output for your modular system, providing an extra Cue Input to monitor any signal.
Left IN is routed to both channels when no Right signal is present. Both Outputs are TRS balanced.
An Headphones out is available. You can route Headphone OUT to the main out or an independent signal with CUE switch. Like this you can either pre-listen your sounds with the CUE Input or listen to your main out without disturbing your neighbors!
Level leds are available to monitor levels of each signal on the module.

http://www.befaco.org/en/output-module-iii/


Ø 4.42 (52 Votes) Average Rating
submitted Mar 28th 2018, 16:43 by Befacosynth | last Change Oct 21st 2021, 15:05 by Befacosynth
