Router

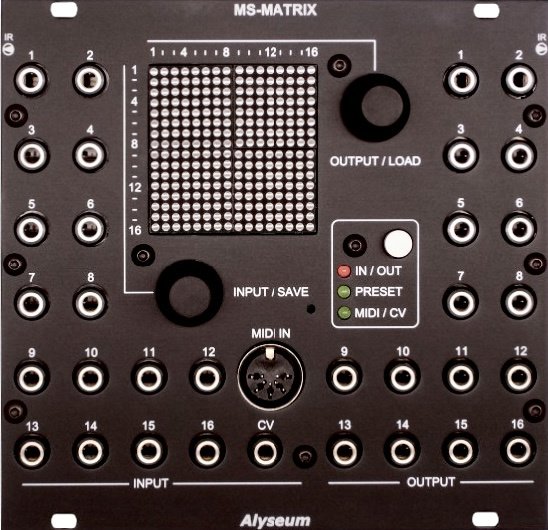

The Alyseum MS-MATRIX is a Eurorack module consisting of a dynamic matrix, both analog and digital in nature, which sports 16 Inputs and 16 0utputs.
A special 256 LED display makes a fast, a friendly and intuitive graphical interface, each LED representing one of the 256 points of connections available.

The module accepts a variety of signals such as Gates, Clocks, CV and Oscillator simultaneously and support a full voltage swing range on all Input/Output of ± 11 Volts, while the different user configurations can be saved as user presets in 32 locations.
These 32 presets can be recalled by hand, by a dedicated CV Input on the front panel, by MIDI (either incoming Note On, PGM CH and the editor, editor offering an unlimited user presets).

The expander modules Q-VCA and SELECTOR can be controlled from the MS-MATRIX unit via MIDI.

Features:

16 X 16 Matrix both Analog and Digital (DC-coupled)
Control via front panel or by freeware editor (OSX and WIN32/64)
Analog distortion: 0.01% (@ ±2 V)
Analog Bandwidth: 0Hz to 20KHz (± 0,1 dB)
Isolation between channels: 92 dB at 1KHz
Inputs and Outputs buffered with unity gain and low offset Op-Amp.
Simple firmware upgrades via by the front panel MIDI port.
Polarised power header and protection against reverse polarity.
Eurorack 26 HP wide.
