Dimensions
4 HP
22 mm deep
Current Draw
30 mA +12V
30 mA -12V
? mA 5V
Price
$130 Price in €

This Module is currently available.

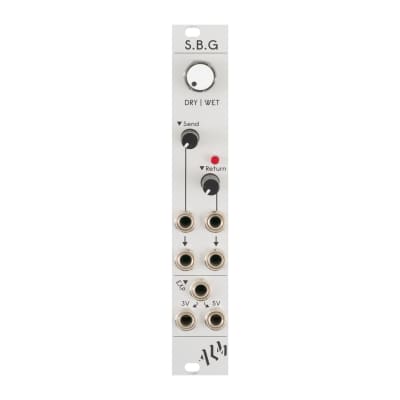

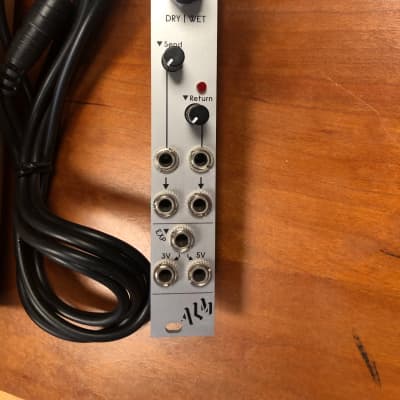

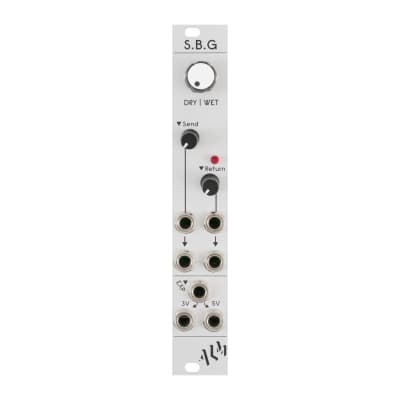

ALM006 - Effects Pedal Adapter

The ‘S.B.G’ is a compact utility module intended for the interfacing of guitar effect pedals with your eurorack modular system.

It provides both attenuation and amplification of audio signals for level matching together with a crossfade control to conveniently adjust the wet/dry mix of a processed signal.

The module also offers regulation of outgoing CV signals for safer use of pedal expression inputs.

  • Attenuation of outgoing modular audio signal sent to external effects.
  • Amplification of returned audio signal to high modular signals
(approx. 3db to 34db of gain)
  • Clipping indication on over-amplification of returned signal.
  • Manual cross fade between original ‘dry’ source signal and returned ‘wet’ signal.
  • Regulation/conditioning of CV modulation signals intended for pedal expression inputs.
  • Includes ‘floating ring’ cable for safe expression input connectivity
  • Skiff friendly
  • Designed and Made in the UK

http://busycircuits.com/alm006/


Ø 4.35 (17 Votes) Average Rating
submitted Apr 17th 2014, 23:48 by wavicle | last Change Jul 12th 2023, 10:05 by ALM
