Dimensions
20 HP
24 mm deep
Current Draw
60 mA +12V
25 mA -12V
0 mA 5V
Price
$395 Price in €

This Module is currently available.

Specs are approved by the manufacturer

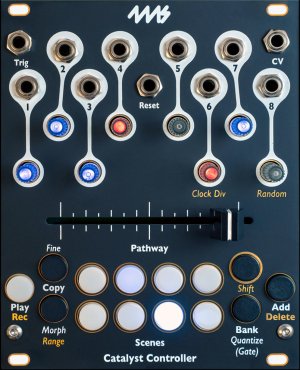

8-channel Macro Controller

The Catalyst Controller is a macro controller with eight precision CV outputs and a responsive crossfader to morph between scenes. A scene is a snapshot of up to eight CV outputs, like a modular preset. Traverse a “pathway” composed of multiple scenes using the crossfader or an external CV signal, or immediately jump using the scene buttons. Record CV and slider movements, and play recordings back via a button or external trigger.

Each output has sub-millivolt precision and a maximum range of -5V to +10V. Channels have an adjustable morphing curve, can be quantized to common scales, restricted to a particular voltage range, or set to output gates.

Whether used as a CV preset manager, seamless transition generator, chord sequencer, CV recorder, or experimental CV playground, the Catalyst Controller puts control of your modular at your fingertips.

The Catalyst Controller can turn into a Catalyst Sequencer, and vice-versa! Hold down a special button combination to change between sequencer and macro controller modes. If you end up buying one module but liking the other one more, you can remove the double-sided faceplate, flip it over, and re-install with the other artwork visible.

https://4mscompany.com/catcon


Ø 3.67 (3 Votes) Average Rating
submitted Jan 17th 2024, 18:16 by 4ms_Company | last Change Apr 14th, 23:48 by 4ms_Company
