Dimensions
1 U
45 mm deep
Current Draw
10 mA +15V
10 mA -15V
0 mA 5V
Price
$299 Price in €

This Module is currently available.

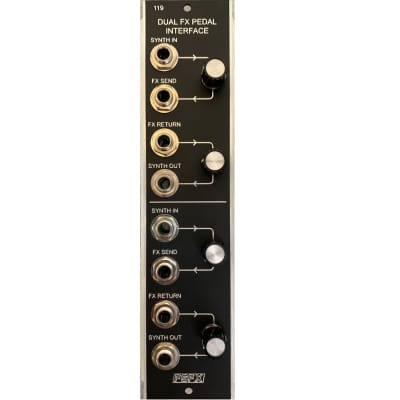

FSFX 119: Dual FX Pedal Interface

Dual FX Pedal Interface

Adding some fx pedals to the patch seems simple enough. Both have ¼” jacks. All I need to do is plug one into the other, bada bing, bada boom, now I got some sweet distortion/chorusing/delay/etc. in the mix. Not so fast. An fx pedal expects a VERY different signal than a modular synthesizer does, and vice versa. It’s a matter of impedances and signal levels, and when they’re not matched properly, the sound suffers. Sometimes it sounds right, sometimes, well…it sounds unusably bad.

The FSFX 119 Dual FX Pedal Interface allows your fx pedals to be easily integrated into your modular synthesizer. It does this by reducing the signal level when being sent to the fx pedals, then adding gain when returning the signal back to the modular synth. Impedances are also adjusted at the fx pedal send and return points. Now using your fx pedals in your patch is as simple as it should be!

Features:

Nichicon “Fine Gold” Series Electrolytic Capacitors in Audio Circuit
Kemet Gold Max Series Ceramic Capacitors
Switchcraft Enclosed ¼” Jacks
Alpha Pots
.dotcom Style Power Connector
KOA Speer 1/4W 1% Metal Film Resistors
Module Depth = 1.75 in.
Power Consumption: 15V = 10mA; -15V = 10mA; 5V = n/a

https://freestatefx.com/collections/free-state-fx-modules/products/119


submitted Jun 17th 2021, 19:04 by parasitk
