Dimensions
18 HP
20 mm deep

Module is a 1U tile in Intellijel format

Current Draw
50 mA +12V
50 mA -12V
0 mA 5V
Price
$159 Price in €

This Module is currently available.

Specs are approved by the manufacturer

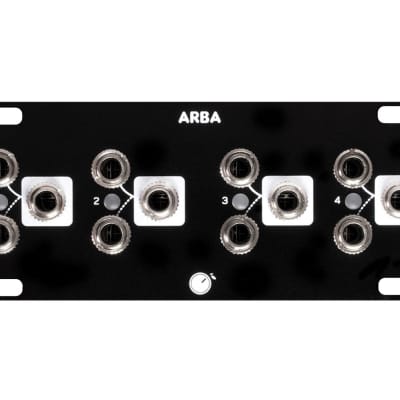

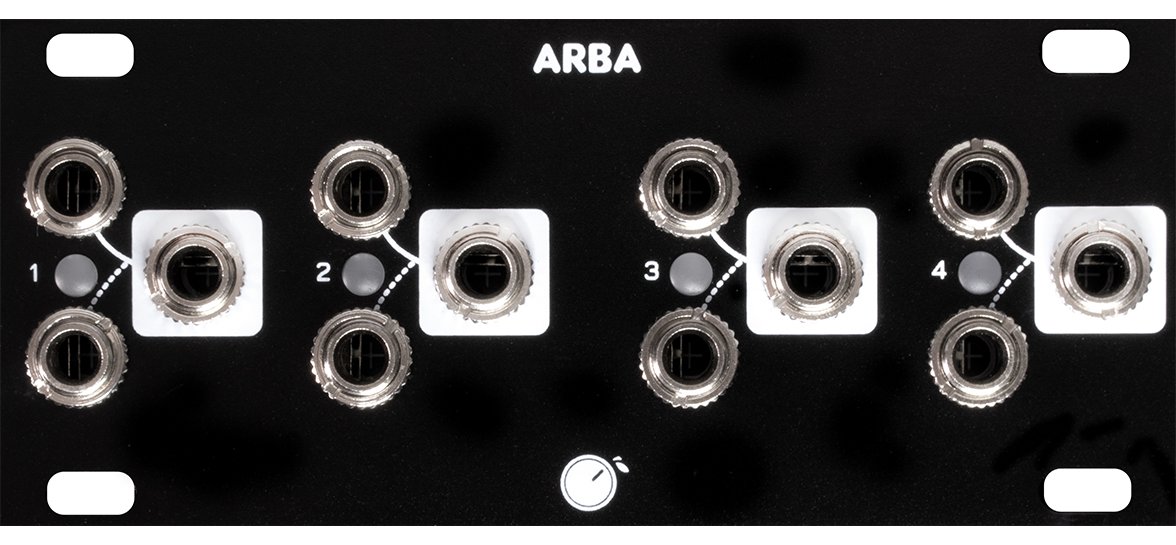

Quad linear VCA / Clipper / Distortion / Limiter

ARBA provides four Voltage Controlled Amplifiers (VCA) with linear response.
It may look like a simple VCA module but under the hood it is packed with features that unleash a variety of uses.

Three features that distinguish ARBA:
• Normalization: Everything is normalized to everything – all of the inputs, CV inputs and
outputs are normalized between the four channels so you can use a variety of configurations depending on how you patch it.
As a result of this feature, you can get a significant gain boost (with CV control!) when you chain several channels together.

• Variable sensitivity: Unlike most VCA's in Eurorack that clip easily due to the 5V unity gain – the cause of this annoying clipping is that many envelope generators output a standard voltage of 8V – with ARBA you can set the sensitivity of each of the channels (or - how much voltage needs to reach the CV input to get unity gain at the output) using the four trimmer resistors located on the back of the module.

• Limiters: soft clipping diodes will limit the outputs to 10.2 volts peak-to-peak and warm up the sound (the limiters can be disabled using switches on the back of the module).

1U / Intellijel
